OEM 100A LiFePO4 Battery With IEC62619 UN38.3 MSDS CE Standard

Price Negotiable
Price: Negotiable
MOQ: 1
Delivery Time: Negotiable
Brand: OEM
Product Description

Product Description:

LiFePO4 Battery Pack

Introducing the LiFePO4 Battery Pack, a reliable and high-quality lithium-ion-phosphate battery. This LFP-battery offers a maximum charge current of 100A, a capacity of 100Ah, and an energy of 4800 WH. Its cycle life is rated at 5000 times, making it a great asset for individuals looking for a long-lasting power source. This LiFePO4-battery is the perfect solution for those needing a dependable and efficient source of power with a long cycle life.

Features:

  • LFP-Battery: LiFePO4 Battery Pack
  • LFP-Battery-Pack: 3 Year Warranty
  • Lithium-Iron-Phosphate-Cell-Pack: Max Charge Current: 100A, Energy: 4800WH, Capacity: 100Ah, Battery Type: LiFePO4


Technical Parameters:

MODEL # LFP 24-100 LFP 48-50 LFP 48-100
SPECIFICATION
Battery Type LiFePO4 LiFePO4 LiFePO4
Battery Model 25.6V100AH 51.2V50AH 51.2V100AH
Nominal Capacity(25℃,0.2C)WH 2560Wh 2560Wh 5120Wh
Adjustable working voltage(Vdc) 22.4~29.2V 44.8~58.4V 44.8~58.4V
Folat Charge Voltage(Vdc) 28V 56V 56V
Max.Continuous discharge current(A) 100 100 100
Max.pulse discharge current(A) 150A 1Sec. 100A 1Sec. 150A 1Sec.
Max.Continuous charge current(A) 100 50 100
Cycle life(+25℃ 0.2C 80% DOD) >5000 Cycles >5000 Cycles >5000 Cycles
Cell Equalizer Current(A 0.1~5A Max.(optional) 0.1~5A Max.(optional) 0.1~5A Max.(optional)
Terminal M6
Storage duration 6 months at 25℃
Safety standard IEC62619,UN38.3,MSDS,CE
Communication function RS484/UART/SNMP/Wifi/Bluetooth
PROTECTION
Protection Overcharge protectionOverdischarge protectionOvercurrent protection Shortcircuit protectionOvertemperature protection
AMBIENT
Noise(dB) <40dB(1 meter)
Working temperature -20℃~+60℃
Humidity 0~95%(no condensation)
Altitude(m) <3000
DIMENSION
L*W*H( size)mm L405*W483*H178mm L655*W483*H178mm
L*W*H(package size)mm L440*W518*H213mm L690*W518*H213mm
Net Weight(Kg): Approx.35kg Approx.72kg
Gross Weight(Kg): Approx.39kg Approx.78kg



Applications:

The LiFePO4 Battery Pack from OEM is a reliable and economical solution for a variety of applications. With UL, CE, UN38.3, and MSDS certifications, this product provides quality assurance and peace of mind. Featuring a minimum order quantity of one, a price that is negotiable, and a three-year warranty, the LiFePO4 Battery Pack is the ideal choice for any application. The pack is powered by a lithium iron phosphate battery, offering 4800Wh of energy and a 100Ah capacity. Additionally, the LiFePO4 Battery Pack boasts a cycle life of 5000 times, making it a durable and long-lasting solution for any application.



Support and Services:

Technical Support and Services for LiFePO4 Battery Pack
  • 24/7 Technical Support
  • Battery pack configuration and design services
  • High quality battery testing services
  • Software and firmware updates
  • Battery cell and pack recycling services
  • Battery pack troubleshooting and diagnostics
  • Battery pack replacement services
  • Battery pack maintenance and repair services

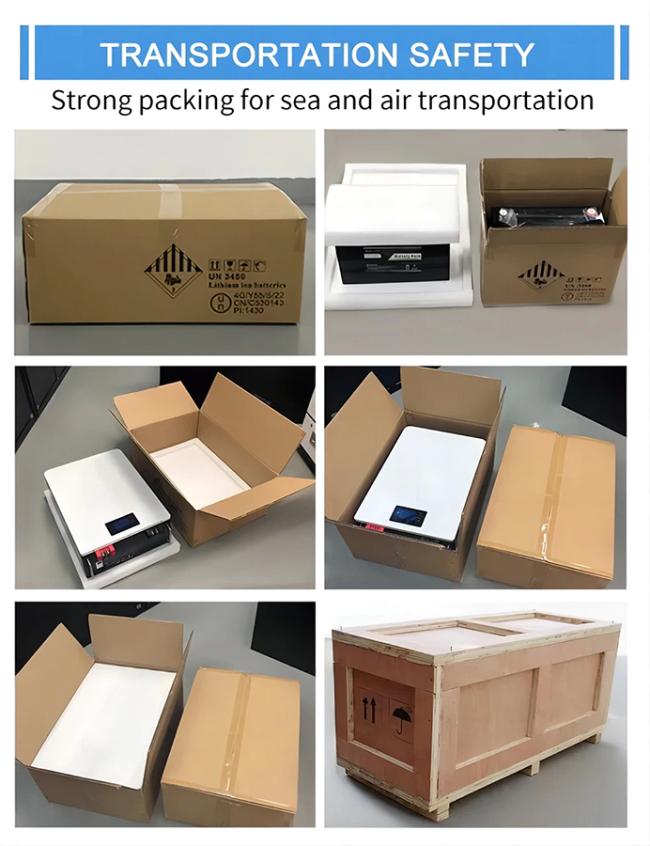

Packing and Shipping:

LiFePO4 Battery Pack Packaging and Shipping

  • The battery pack should be packed in a clean and dry container.
  • Do not put the product in an environment with a temperature higher than 40℃.
  • The container should be shockproof and moisture-proof.
  • The product should be shipped in a timely manner.
  • The shipping company should be reputable and reliable.
  • The shipping documents should be completed correctly and accurately.
  • The destination address should be provided accurately.
  • The shipping cost should be reasonable.
