3.15t/H Cement Chain Drag Conveyor For Clinker
Top Supplier High Quality Cement Drag Chain Conveyor For Clinker
Product Description
Drag Chain Conveyor is a bulk material conveying equipment, which is consists of head section with driving device, connect section, tail section, tension device, as well as scraper and chains. It gives you the ability to move large volumes of material in virtually any direction or layout. The flexibility in engineered design means we can provide the optimum conveyor layout to achieve all of your bulk material handling and operating goals.By moving the chain, the material in the closed rectangular box can be continuously transported horizontally or slightly tilted. Incline angle can be customized according to your requirement.
It has the advantages of simple structure, light weight, small volume, strong sealing and convenient installation and aintenance. MS type drag chain scraper conveyor is widely used in cement plant, coal, metallurgy, mining, power plant, construction, chemical, grain, etc.
Main Parameters
| Model | MS20 | MS25 | MS32 | MS40 | MS50 | MS63 | MS80 |
| Trough Width(mm) | 200 | 250 | 315 | 400 | 500 | 630 | 800 |
| Load-bearing Depth(mm) | 200 | 248 | 288 | 370 | 476 | 476 | 476 |
| Chain Speed(m/s) | 0.05~0.1 | 0.06~0.12 | 0.08~0.016 | ||||
| Capacity(t/h) | 3.15~6.3 | 5~10 | 6.3~12.5 | 12.5~18.5 | 20~40 | 25~50 | 30~100 |
| Max Conveying Length(m) | 60 | 70 | 50 | 45 | 35 | ||
| Power(kw) | 2.2~7.5 | 3~7.5 | 4~11 | 5.5~18.5 | 7.5~22 | 11~22 | 15~37 |
Advantages And Features
1. Totally enclosed structure, without pollution, environmental friendly.
2. Simple structure, convenient installation and maintenance.
3. Horizontal or slightly inclined transport, angle can be from 0° to 30°.
4. Multiple material feeding point and discharging point according to requirement.
5. Trough width can be 160-500mm to meet different material types and capacity.
6. Kinds of scraper chain, to meet different types of material.
7. Conveying distance is up to 80m with material temperature lower than 120°C.
8. With screw take-up device, can take-up itself automatically, to avoid chain take off.
9. Reducer motor brand can be domestic or imported: Tailong, SEW, Siemens etc.
10. Can be disassembling into several sections, save space during transportation.
Application
Big Capacity Large Incline Angle Scraper Chain Conveyor is widely used in cement plant, coal, metallurgy, mining, light, construction, chemical, grain, power industries etc.
Details Show

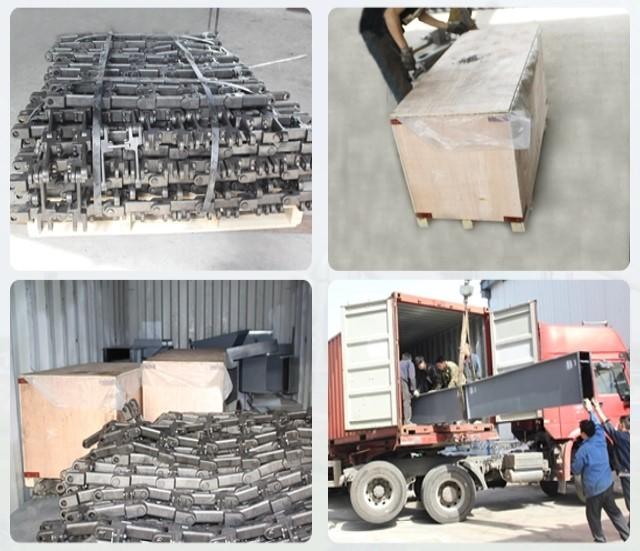

Package
Customer Case
