Heat Resistant Translucent Matte Polycarbonate Film
PC6842
Feature
- Good Appearance
PC film can be done some kinds of color coated treatment, the gloss appearance is better than resins.
- Precision Dimensional Stability
Polycarbonate, a non-crystaline resin, with dimensional precision when forming. There is no obvious changes on sizes after deformation and water absorption. With stable and precise dimension, polycarbonate film is one kind of best material to do precise forming and processing.
- Heat Resistance
PC film with good heat resistance can be widly used in many fields. Mechanical properties are changed as per termperature, which is favorable to strength design.
Description
PC film is short for Polycarbonate film. It is an amorphous, odorless, non-toxic, highly transparent colorless or slightly yellow thermoplastic engineering plastic.
| Product Specification | ||||||
| Code |
Thickness (mm) |
Width*Length (mm*m) |
Foot*Foot | Kg/Psc | Pound/Pcs | R/Plt |
|
PC6842 Film
|
0.05 | 930*1500 | 3’*4921’ | 84 | 185 | 6 |
| 0.075 | 930*1000 | 3’*3280’ | 84 | 185 | 6 | |
| 0.125 | 930*640 | 3’*2100’ | 89.3 | 197 | 6 | |
| 0.175 | 930*457 | 3’*1500’ | 89.3 | 197 | 6 | |
| 0.25 | 930*320 | 3’*1050’ | 89.3 | 197 | 6 | |
| 0. 375 | 930*213 | 3’*699’ | 89.3 | 197 | 6 | |
| 0.43 | 930*186 | 3’*610’ | 89.3 | 197 | 6 | |
| 0.5 | 930*160 | 3’*525’ | 89.3 | 197 | 6 | |
Application

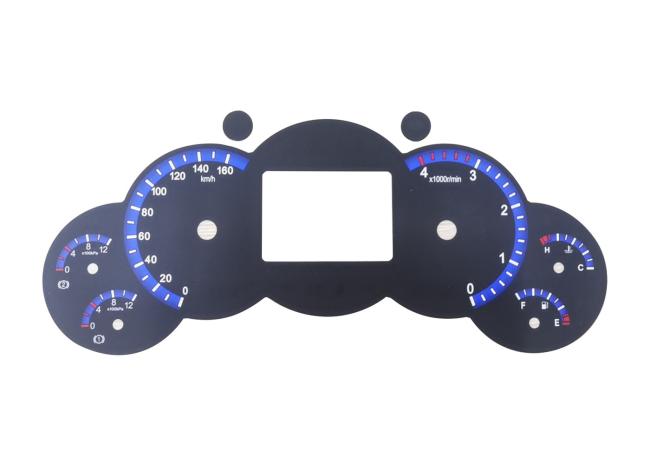

It has high chemical resistance, excellent molding and printin, widely use in instrument panel, membrane switch, control panel, mouse pad
And other fields.
