8K 4K SMD HD P1.56 P1.95 P2.5 P2.604 P2.976 P3.91 Full Color Ultrathin Fixed Indoor LED Video Wall Panel Screen Display
Price:
Negotiable
MOQ:
1~10
Delivery Time:
7-20 days
Brand:
DDW
Product Description
Indoor LED Screen HD Series
High-definition indoor LED display to deliver exceptional viewing experience. Reach your target audience effectively with full HD, 2K or 4K Ultra HD LED screen.
Perfect Cabinet Design
cabinet fxied slot, fast lock,magnet adsorption module, module installation knob, Power& signal connector, detachable power
boxing, and more
Optional cabinet dimension
500x250x53mm/750x250x53mm/1000x250x53mm
250x250mm Size Modules
P1.95/P2.5/P2.976/3.91

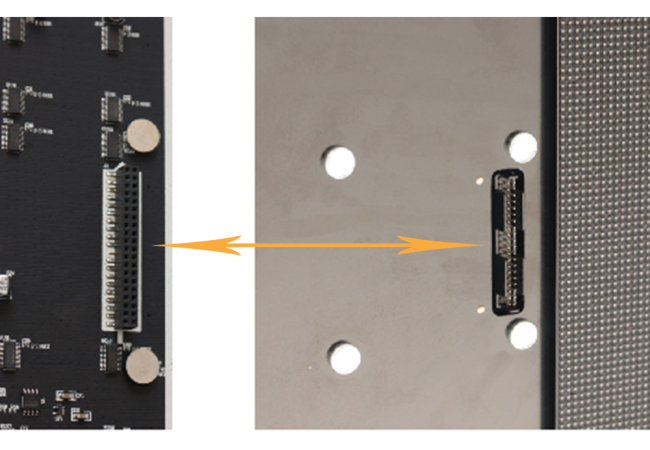

Hot-swapping
Hard connection
No cables
High refresh IC
PWM constant current output Anti-interference Control the brightness precisely

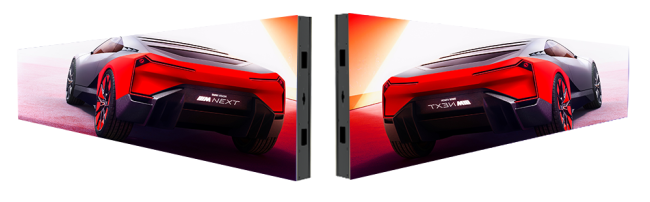

Double-sided display
can be synchronous or asynchronous to meet different needs

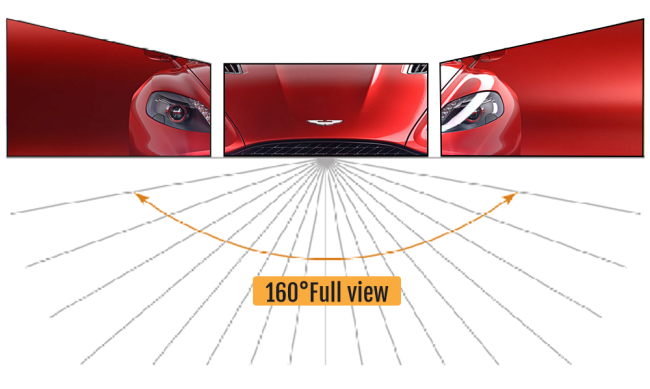

Super wide viewing angle
can be synchronous or asynchronous to meet different needs,
| LED type | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Physical density(dots/sq.m) | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module resolution | 160X160 | 128X128 | 100X100 | 96X96 | 84X84 | 64X64 |
| Module dimension(mm) | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 |
| Module quantity(W×H) | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 | 4X1/3X1/2X1 |
| Panel resolution | 640X160 | 512X128 | 400X100 | 384X96 | 336X84 | 256X64 |
| Maintenance | Front access service | Front access service | Front access service | Front access service | Front access service | Front access service |
| Cabinet material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Pixel calibration | Yes | Yes | Yes | Yes | Yes | Yes |
| Brightness(cd/m²) | 500 | 700 | 800 | 800 | 800-1000 | 1000-1200 |
| Color temperature(K) | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional | 3200-9300 Optional |
| Grey scale(bit) | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional | 14/16 Optional |
| Viewing angle(V/H) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| Brightness/Color uniformity | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% | ≥97% |
| contrast | 6000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 |
| Frequency rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Drive mode | 1/40Scan | 1/32 Scan | 1/25 Scan | 1/32 Scan | 1/28 Scan | 1/16 Scan |
| Max power consumption(w/m²) | 480 | 600 | 600 | 600 | 600 | 800 |
| Avg. power consumption(w/m²) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| Electric power | AC90-264V | AC90-264V | AC90-264V | AC90-264V | AC90-264V | AC90-264V |
| 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | 47-63Hz | |
