High Brightness Outdoor LED Billboard 8000CD P14 Advertising Screen Display
High Brightness Outdoor LED Billboard 8000CD P14 Advertising Screen Display
We are the professional and famous Manufacturer of LED Display in Shenzhen, China. We have exported to North America, Europe, South America, Middle East, Central Asia and many other areas of the world.
>> Application of led screen

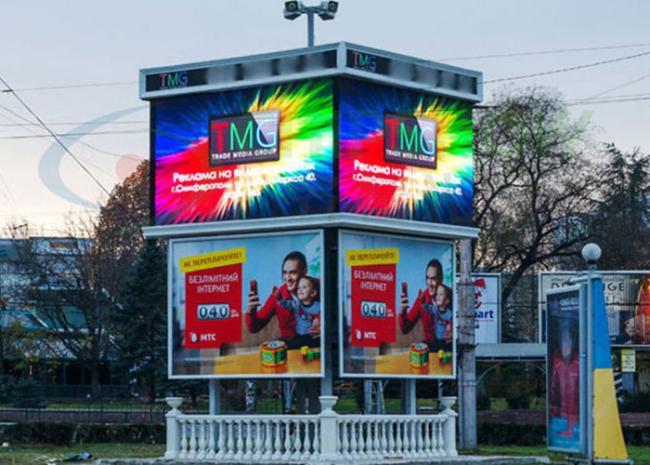

The indoor and outdoor LED screens are widely used on street, building, supermarket, entertainment place, sports field, live show stage, meeting room, airport, hotel and many other places for advertising and other usage.
(1) High brightness reach to 8000CD.
(2) High Refresh Rate reach to 5000Hz or more
(3) Long lifespan and stable quality
(4) Aluminum Material
(5) Working under the temperature -30C to +75C
(6) Save 35% power than normal screens
| Serial Number | Specification | |
| 1 | Pitch | 14mm |
| 2 | Module Resolution |
16×8=128 (dot) |
| 3 | Module Size | 224mm ×112mm |
| 4 | Module Quantity/cabinet | 24(Pcs) |
| 5 | Cabinet Size | 896mm×672mm |
| 6 | Resolution/cabinet |
64×48(dot) |
| 7 | Density | 5102(dot/s.q.m) |
| 8 | LED Driving method | Constant driving / 1/2 Scan |
| 9 | LED Standard | DIP546 |
| 10 | Viewing Angle (H/V) | H:100±5°V:45° |
| 11 | Brightness | ≥7000CD/s.q.m |
| 12 | The Optimal viewing distance | 15-200m |
| 13 | Display Colors | 687(million) |
| 14 | Pixel configuration | 1R1G1B |
| 15 | Protection Degree | 65(IP) |
| 16 | Power | (Max.Consumption): True pixels:1000 W/s.q.m |
| (Average Power): True pixels:450 W/s.q.m | ||
| 17 | Control mode | Video Sync |
| 18 | Display Mode | (Max)1024×768/1280×1024 |
| 19 | LED Parametres | (R):λd (619~624nm)IV: (460~510mcd) |
| (G):λd (520~524.5nm)IV: (2000~2300mcd) | ||
| (B):λd (468.5~472.5nm)IV:(490~540mcd) | ||
| 20 | Rate | ≥300Hz |
| 21 | Communication | 1000M Cats(≤120M)/Fiber optical(10.000m) |
>>Advantage
(1) Adanced digital techonlody for vedio.
(2) Distributing scanning method and modularity in designs.
(3) Constant static driving method and the brightness can be adjusted by itself.
(4) Super brightness and pure pixels
(5) Clear pictures with distortion and doubble images.
(6) Can show vedio, cartoon, graph, letters, pictures and so on.
(7) Can be controlled by Lan remotely.
