Multi Media P16 Outdoor Full Color LED Display IP65 Large Led Video Wall Panels
Multi Media P16 Outdoor Full Color LED Display IP65 Large Led Video Wall Panels

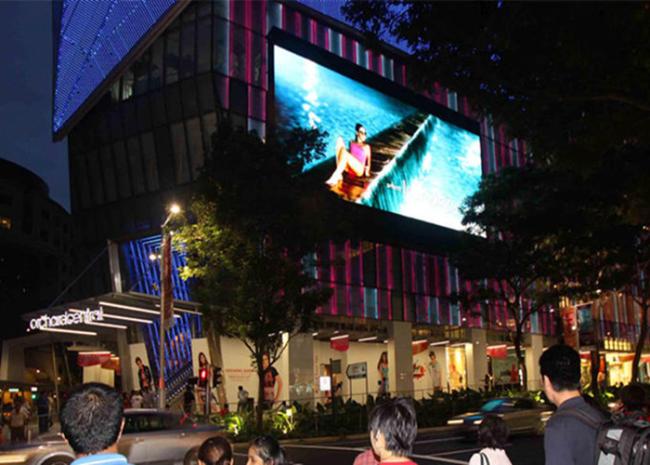

Outdoor full color display refers to the all-weather LED display applied in outdoor complex environment, connecting optics, microelectronics, information processing, mechanics and other technologies as a whole. The main application areas: Government Plaza, leisure square, Cultural Square, large entertainment plaza, commercial center, advertising- information publish board, commercial street, railway stations, airports, bus stations, subway, shopping malls, supermarkets, hospitals, hotels , education system, bank, securities markets, auction houses, shopping centers, media centers etc.
>> Specifications
| Type | Outdoor Full Color Display |
| Best Viewing Distance(m) | 15m |
| Pixel Pitch(mm) | 16mm |
| Pixel Density(Dots/sqm) | 3906Dots/sqm |
| Configuration | 1R1G1B |
| Module Size(mm) | 256mm x256mm |
| Unit Box Pixel(Dots) | 64Dots x64Dots |
| Cabinet Size(WxHxT) | 1024mm x 768mm x150mm |
| Cabinet Weight(Kg) | 55Kg |
| Brightness(cd/sqm) | 8000cd/sqm |
| Refresh Frame Frequency | 1000Hz |
| MTBF(H) | 10000H |
| Maximum Power Consumption(W/sqm) | 600W/sqm |
| Average Power Consumption(W/sqm) | 400W/sqm |
| Left/right Viewing Angle(Degree) | 140° |
| Grey Scale | 12bit |
| Display Color | 16777216 colors |
| Brightness Adjust | 256grade automatic,100grade manual |
| IP Standard | IP65 |
| Display Module Brightness Uniformity | 5% |
| Pixels Out Of Control Rate(Dots) | 1/100000Dots |
| Life Span(H) | 100000H |
| Operating Voltage | AC220V/50Hz&AC110V/60Hz available |
| System Working Environment Temperature | —20°C~+60°C |
| System Working Environment Humidity | 10%RH~90%RH |
>> Product advantages
1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Quality advantage: From material to finished product, from design to produce, we control all steps
3) Service advantage: Better service at same situation, better cooperation at same service
