P10mm Waterproof Vled Display Hire Big Screen Outdoor Full Color 10000dots / M2
P10mm Waterproof Vled Display Hire Big Screen Outdoor Full Color 10000dots / M2
P10 SMD Rental Led Display resolution is very high .And it is specially designed for outdoor LED lamp adopted standard SMD5050 encapsulation technologies. Its advantage is high brightness and well radiating. Every light unit is composed of red, blue and green color. And its showing color is up to 10.7 billion. So it can display color full dynamic and static magic perfectly. It supports VGA,DVI, HDMI,TV video, VCD or DVD etc.
P10 SMD outdoor full color Rental Led Display adopted auto-product technology. And its feature is high reliability, high brightness,
low power consumption, long life-span, big viewing angle. So it mainly use in Square, outdoor vocal concert, Park, Market and Golf course, etc.
| number | Item name | Parameter and index |
| unit module | ||
| 1 | LED encapsulation mode | 3-in-1 SMD5050 |
| 2 | Horizontal axis | 120° |
| 3 | Vertical axis | 120° |
| 4 | Pixel composition | 1R1G1B |
| 5 | Pixel pitch | 10mm |
| 6 | Scan method | 1/2 |
| 7 | Drive method | Constant current |
| 8 | Module resolution | 16×16 pixels |
| 9 | Module dimensions | 160mm×160mm |
| 10 | Module type | incorporated lamp and drive |
| 11 | Module working voltage | +5V |
| 12 | Module average power | 6W |
| 13 | Module maximum power | 25W |
| 14 | Module shell material | PC |
| 15 | Module mask material | PC |
| unit cabinet | ||
| 1 | Module layout | 6×4 pieces |
| 2 | Cabinet resolution | 96×64 pixels |
| 3 | Cabinet maximum power | 750W |
| 4 | Cabinet average power | 188W |
| 8 | Cabinet dimension | 960mm×640mm |
| 6 | Cabinet material | steel/aluminum alloy |
| 7 | Cabinet color | black/gray |
| 8 | Protection grade (front/back) | IP65/IP54 |
| Entire screen | ||

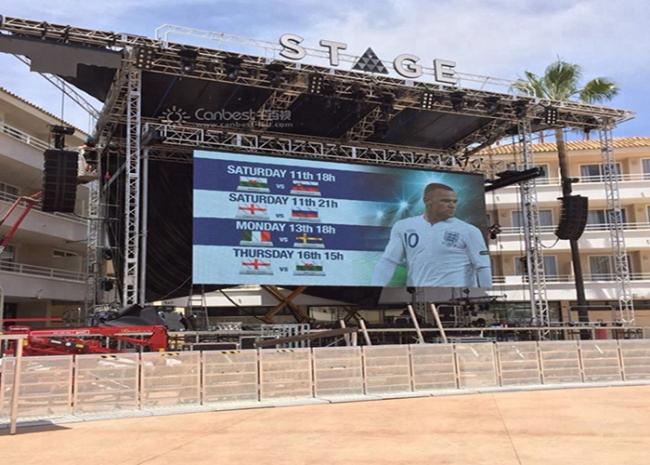

1. Rental structure support haning up at higher site to reach more audience at farer place;
2. High refresh frequency up to 4000HZ makes live transfer/broadcase possible of outstanding image/video effect;
3. Flight case package support you move freely from one event site,advertising campaign to next;
4. As requested,these rental led display screen can use Auluminum cabinet to reach lighter weight.
