High Resolution Outdoor LED Billboard Advertising Video 14mm Pixel Pitch 6000 Nits

Price Negotiable
Price: Negotiable
MOQ: Negotiable
Delivery Time: 7-20 days
Brand: DDW
Product Description



High Resolution Outdoor LED Billboard Advertising Video 14mm Pixel Pitch 6000 Nits



 Our Large Led Advertising Screen use powerful DIP LEDs, which are from the best LED suppliers both at home and abroad. The brightness can reach over 6000nit. Production procedure is under very strict quality control.
The display has the advantage of excellent flatness, super uniformity color and brightness and long viewing distance. Our outdoor LED displays are widely used in commercial advertisement, stadium, exhibition, TV-Show, mansion video wall, shopping malls, stations, hotels, etc.



 >> Main features of Large Led Advertising Screen

 1. Weatherproof to IP65 standards

 2. High resolution images

 3. Competitive prices, reliable quality;

 4. High contrast ratio which ensures vivid images;

 5. Low power consumption, environmentally friendly;

 6. Customizable for various sizes;

 7. Compatible software: S-Video, Composite, YUV, RBG, SDI, HKSDI, Data SVI up to SXGA;

 8. Excellent after-sales service, warranty of one years;



 >> Large Led Advertising Screen specification



Parameters Units Value
Pixel pitch mm 14
Led package mode DIP 546
Led type Opto/Silan
Physical density Pixels/sqm 5102
Drive mode Duty 1/4 scan
Module size mm 224*112
Cabinet size mm 896*896
Color configuration   2R1G1B
Module resolution dots 16*8
Cabinet resolution dots 64*32
Cabinet weight kg 52
Best viewing distance m 12-100
Gray scale levels 16.7M
Brightness Nits 6000
Viewing angle ° H: 120/ V:50
Color temperature Deg.K 6500-8500
Cabinet material   Galvanized steel
Frame rate Hertz 60
Brightness control Hertz 256
Refresh rate Hertz 600
Input power (max) Watts 800
Input power (typical) Watts 300
Lifetime Hours 100,000
Red wavelength nm 620-625
Green wavelength nm 520-525
Blue wavelength nm 475-478
Working voltage Watts 110/220V
MTBF Hours 5000
Malfunction dot rate   0.0001
Computer system WIN98, WINXP, WIN2000, etc
Input signals RF, S-Video, RGB, RGBHV, YUV, YC, COMPOSITION, etc



 >> Applications



 LED display is applied for advertising, city beautifying, information publicity, great concerns and relative activities.

 1. Outdoor advertising, digital billboards, advertising in big companies

 2. Stadium, Sports halls, fields, playgrounds

 3. Airports, bus stations and railway passenger terminals

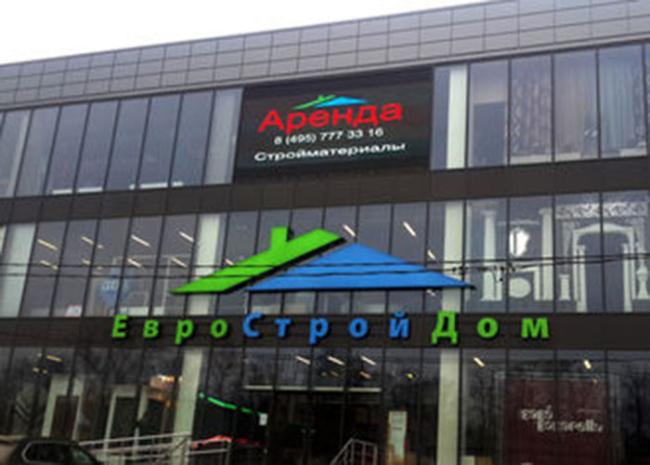

 4. Facades of shopping malls, department stores, banks and car dealerships

 5. Architecture and social projects, information systems in cities.

 6. Show-business, concerts, festivals, motor shows and other public events.
