Ultra Slim HD Outdoor LED Display Screen P12 SMD Music Concert Waterproof
Ultra Slim HD Outdoor LED Display Screen P12 SMD Music Concert Waterproof
>> Application and function

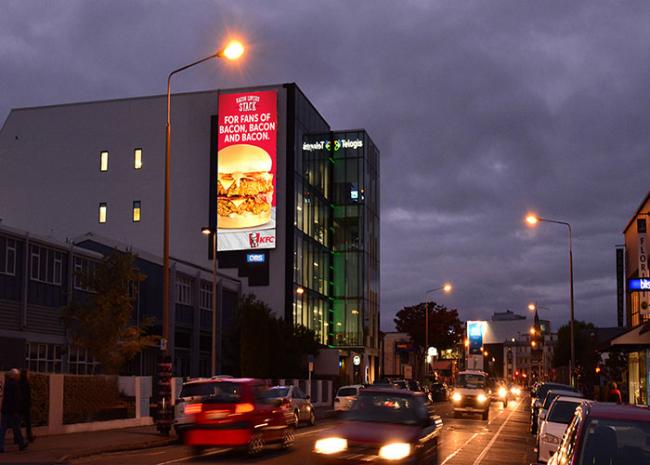

Suit for advertisement, stage, stadium, exhibition, TV-Show, mansion video wall, shopping mall, banks, schools, bus station, airport, gym, market, factories, monitoring centers, hospitals, bars etc.
1) Video display for advertisement
2) Live broadcast for news, sport, concert…
3) Stage background
4) Information display for time, schedule, text
5) Dynamic display for logo, text, video
>> Product Description
1. 22 bit distributed video processing: Advanced video processing produces crystal-clear, detailed images with smooth motion reproductions.
2. 12000HZ (hertz) LED refresh rate
3. 100,000 hour lifetime (at 1/2 brightness)
4. 8000: 1 Contrast: Unmatched real-world contrast and overall color fidelity. High-contrast design delivers deeper black using contrast-enhancing louvers and module etchings.
5. Image data is distributed to individual LED modules from multiple directions and power redundancy is also available.
6. Full-depth image calibration in the factory and in the field provides for a uniform display picture.
| Resolution | 16(H)×16(V) |
| Pixel Pitch | 12mm |
| LED Configuration | 1R1G1B DIP |
| Pixel Density | 6,944pixels/ m2 |
| Module Size | 192*192mm |
| Driving IC | MBI5024 |
| Driving Method | 1/4 Scan, Constant Current |
| Cabinet Weight | 42kg/sq.m. |
| Mechanical Ratings | |
| Hanging Weight Support | 2T |
| Surface Flatness | Gap<0.5mm |
| Optical Ratings | |
| Brightness | >5,500cd/m2 |
| View Angle | 110°/70° |
| Gray Scale | 8bits input, correction with 14bits |
| Display COLOR | 16.7M |
| Brightness Adjustment | 0~100% |
| Power Supply | |
| Operation Power | 90~260V 50~60Hz |
| Max. Power Consumption | 1000W/m2 |
| Average Power Consumption | 320W/m2 |
| Control System | |
| Control Mode | Synchronous display with control PC by DVI |
| Frame Update Frequency | 60~85Hz |
| Screen Refresh Frequency | 300~1000Hz |
| Gamma Correction | -5.0~+5.0 |
| Support Input | Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI |
| Control Distance | Ethernet cable<120m or Fiber Optic<10Km |
| Support VGA Mode | 1024×768, 1280×1024, 1600×1200, 1920×1280 |
| Brightness Correction | Pixel, Module, Cabinet |
| Environmental | |
| Operating Temperature | -20°~+60° |
| Operating Humidity | 10~95% RH |
| Operating Life | 100,000hours |
| MTBF | 5000hours |
| Protection Level | IP65 |
| Out of Control Rate | <0.02% |
>> Advantages
1. Competitive price: we have the competitive price and the same quality in the market.
2. Performance: Best Equality, high consistency, Big viewing angle, can repair each led lamps
3. High quality: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4. Good service: Better service at same situation, better cooperation at same service!
