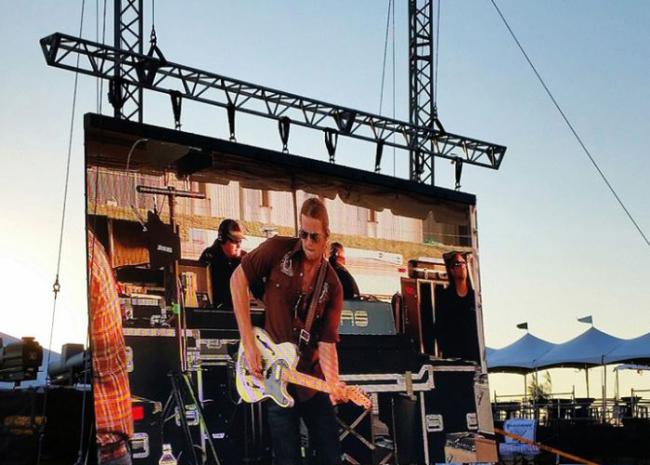

Concert Outdoor Stage Rental LED Display Advertising With SMD3535 LED Lamp
Concert Outdoor Stage Rental LED Display Advertising With SMD3535 LED Lamp
Our Stage Screen use advanced processing technology, guarantee for high-qulity and long-lifetime products.
The bright difference of any two pixels is less than 2%,it assures our LED display’s uniformity in color and brightness, in avoid “splash”,”glare” “mosaic” and blur.
Low-budget, high pixel density, more vivid and stable pictures(No Flickering).
Can be normally used under the temperature between -25°C and +75°C.
With production capacity of 5,000 m2 per month, can guarance for production cycle and delivery cycle.
1. With SMD 3535 LED lamp, which is much better than DIP for rental screen:
2. Super slim and super light, fast installation
The cabinet size is 500*500*86mm,saving a lot of space. The weight is only 7.5KG/cabinet.This saves much transportation cost and labor cost.
3. IP65 protection level, water-proof. Strong weather resistance, can be used in various severe environments.
4. Adjustable Brightness to fit both indoor and outdoor rental use.
5. High refresh rate from 2000Hz to 4800Hz, offers the best effect of live broadcast.
6. Hanging design. Traditional cabinet is too heavy to hang--one cabinet is usually 40-50KG,needs 3 or 4 persons to move it. But our model can easily be hung.
>> Specification
| Pixel pitch | 6mm | LED encapsulation | SMD3528 |
| Module resolution | 32×32 dots 32×16 dots |
View angle | 140°/140° |
| Module size | 192×192 mm 192×96 mm |
Working environment temp |
Temp: -20°C to +60°C Humidity: 35%~85% |
| Pixel density | 27,777 dots/m² | Working voltage | 110 V±15% or 230 V±15% |
| Pixel configuration | 1R1G1B | Driving method | 1/8 scan, constant current |
| Optimun Viewing distance |
>5 m | Gray level | RGB/8192/14bit |
| Max power consumption |
850 W/m² | Display function | Graphics,Animation, and video |
| Brightness | >2000 CD/m² | Refresh rates | > 800Hz |
| Life span | >100,000 hours | Blind spot rate | < 0.00001 |
>> Features
1. SMD3-IN-1 technology are used for indoor LED display
2. wide view angle:140 inhorizonal and 140 in vertical
3. special design and advanced SMT technology improves the heat dissipation
4. with high fresh rate controller, guarantee that no scan line when taking photos
5. regular shape and special shape(such as curve,round) can be designed
6. easy for assembleing and connection with the connector added
7. high color uniformity and clear image can bring you a vivid audio visual effect
8. both front access and rear access areavailable
