Cosmetic / Detergent Making Machine 0 - 63 R / Min Vacuum Emulsifying Mixer
Cosmetic / Detergent Making Machine 0 - 63 R / Min Vacuum Emulsifying Mixer
Cosmetic /Shampoo/Detergent Making Machine Homogenizer
Mixer Hand Wash Liquid Soap Making Machine
What it use for:
1. Used as mixing tank, blending tank etc.
2. Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.
Structure characteristics of the Vacuum Emulsifying Mixer:
1. Made of single-layer stainless steel structure.
2. Materials are all sanitary stainless steel.
3. Humanized structure design and easy to operate.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.
Features of the Vacuum Emulsifying Mixer:
| Work Volume | Dimension of tank | Total height | Insulated layer | Diameter of inlet&outlet |
| (L) | (mmxmm) | (mm) | (mm) | (mm) |
| 500 | 840*1000 | 2300 |
60
|
38
|
| 600 | 920*1000 | 2400 | ||
| 700 | 990*1000 | 2400 | ||
| 800 | 950*1220 | 2550 | ||
| 900 | 1010*1220 | 2700 | ||
| 1000 | 1060*1220 | 2700 |
51
|
|
| 2000 | 1340*1500 | 2750 | ||
| 3000 | 1410*2000 | 3500 | ||
| 5000 | 1910*2000 | 3850 | ||
| 10000 | 2300*2440 | 4500 | ||
| 15000 | 2530*3000 | 5200 | ||
| 20000 | 2640*3660 | 5800 |
Intruduction of the Vacuum Emulsifying Mixer:

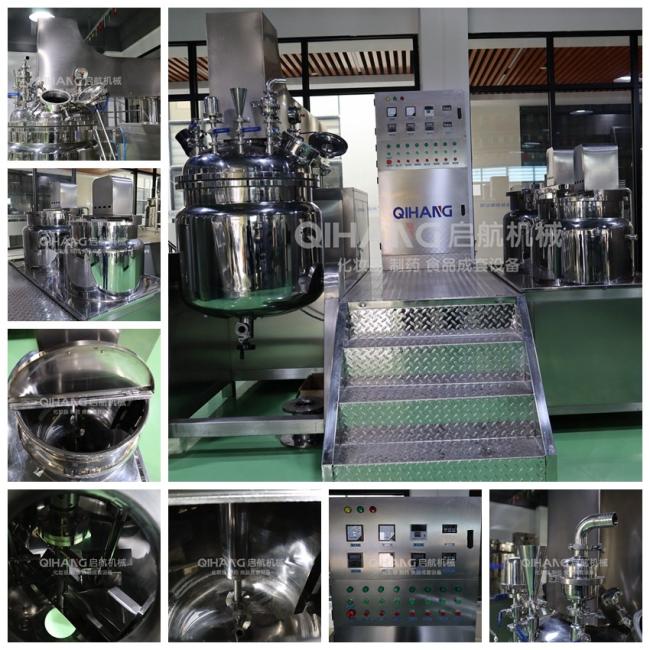

The vacuum emulsifying mixer is mainly composed of water pot, oil pot, emulsifying pot, vacuum system, lifting system (optional), control system (PLC is optional), operation platform.
It is suitable for production of ointment and cream products in cosmetic and pharmaceutical plants.
The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
Configuration of tank:
1. Quick open manhole.
2. Various types of CIP cleaners.
3. Fly and insect resistant sanitary breathing cover.
4. Adjustable triangular bracket.
5. Dismountable materials input pipe assembly
6. Thermometer (According to customer requirements ).
7. Ladder (According to customer requirements).
8. Paddle blender.
9. Liquid level meter and lever controller (According to customer requirements).
10. Eddy-proof board.
11. Customized and Non-standard products also welcomed.
