Fixed Homogenizing Shampoo Emulsifier / Cosmetic Making Machine SUS304 / 316 Material High Productivity
Fixed homogenizing emulsifier / Cosmetic Making Machine SUS304
/ 316 Material High Productivity/shampoo emulsifier
Shampoo emulsifier Techanical Parameter:
| Technical Parameters | ||||||
| Model | Volume(L) | Emulsify Mixer Tank | Size(L×W×H) | |||
| Emulsify motor(KW) | Emulsify speed(RPM) | Scraped wall motor(KW) | Scraped wall speed(PRM) | |||
| 10 | 10 | 1.1 | 0-3400 | 0.37 | 0-60 | 1200×600×1300 |
| 20 | 20 | 1.5 | 0.75 | 1500×800×1500 | ||
| 50 | 50 | 3 | 0.75 | 2750×2100×1900 | ||
| 100 | 100 | 3 | 1.5 | 2800×2150×2100 | ||
| 200 | 200 | 4 | 1.5 | 2850×2200×2200 | ||
| 300 | 300 | 5 | 2.2 | 3000×2600×2500 | ||
| 500 | 500 | 7.5 | 2.2 | 3800×2800×2700 | ||
| 750 | 750 | 11 | 3.7 | 3900×3900×2900 | ||
| 1000 | 1000 | 11 | 3.7 | 3900×3400×3150 | ||
| 2000 | 2000 | 22 | 7.5 | 4850×4300×3600 | ||
| We can customize the equipment according to customer requirements. | ||||||
Shampoo emulsifier Product Description:
|
China Manufacture Stainless Steel Vacuum Emulsion Mixer Chemical Homogenizer |
|||
|
Profile type |
Emulsifying Tank |
Oil Tank |
Water Tank |
|
material |
SS316L |
||
|
Volume |
20L-2000L (Customized) |
||
|
application |
Food, pharmaceutical industry, chemical industry, etc |
||
|
Working pressure |
Vacuum |
Normal Pressure |
Normal Pressure |
|
Surface |
Mirror, Ra<0.4μm |
||
|
Heating mode |
electric heating |
||
|
Agitator Type |
scraped wall mixer+emulsify mixer |
dispersing mixer |
dispersing mixer |
|
Mixer speed |
0-3400RPM/0-60RPM |
1400RPM |
1400RPM |
|

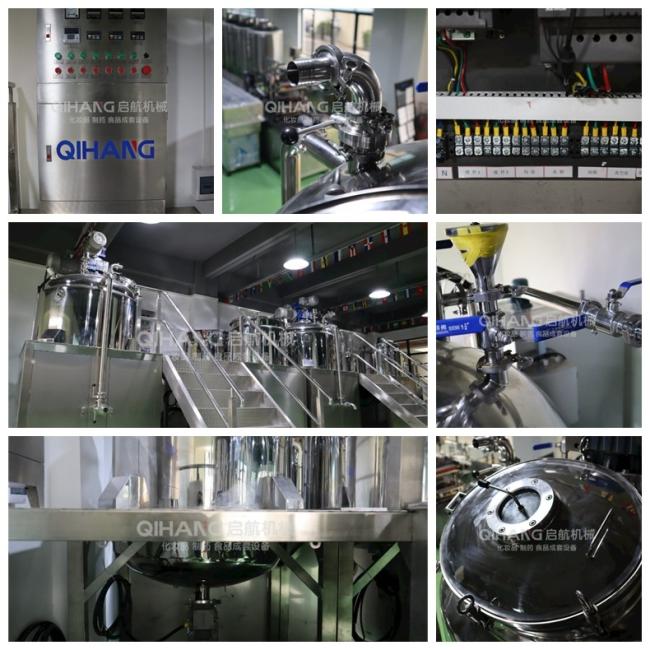

PARTS DETAILS |
1 .Vacuum Pump |
||
|
2 .control Box |
|||
|
3 .Various types of CIP cleaners |
|||
|
4 .Tilting type or vertical type |
|||
|
5 .Inlet and Outlet sanitary valve. |
|||
|
6 .Stainless steel platform |
|||
-
It’s used for produce the cream, lotion, paste, ointment, paste, conditioner, etc. Complex scraping board blending oar is suitable to every kind of complicated recipe and achieve optimizing effect;
-
Polytetrafluroethylene scraping board cater to body of blending groove and scrape out viscosity material on boiler wall;
-
Homogenizer is installed on boiler bottom to increase motor power more thoroughly and strongly. During few production, it can exert homogenizing effect fully;
-
Mightiness balance isotactic curve rotor is matched with stator with corresponding structure to realize liquid high-capability cut,rubbing,centrifugal to make sure exquisite and slick cream;
-
boiler body and pipe surface mirror polishing 300EMSH (sanitation grade) accords with Daily Chemical and GMP regulation.
-
Customer can choose frequency conversion timing homogenizer and highest rotate speed is 3400 r/min.
