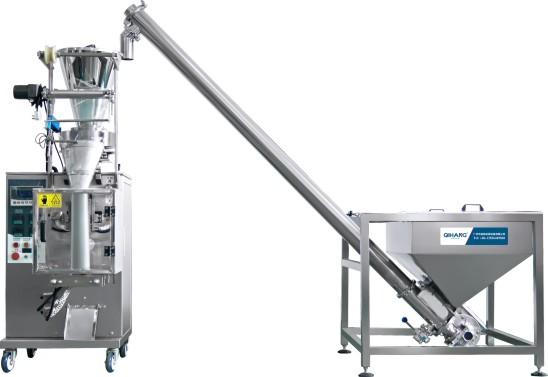

Automatic Packaging System JY-50A Series Granule Packing Machine Hot Sell By Pakistan

​Overview

• The control system of the display screen is in Chinese and English, which including the stainless steel box that to set the required parameters in the display setting unit(such as filling and measure bag volume),and to achieve the best packing speed by the control system automatically optimizes the maching of the actions.
• The system is high accuracy, which called step motor control, it can change the length of the bag without the adjustment of other components. The complete trademark pattern can be obtained when the packing material with color mark.The frame wrapping paper adopts the self-weight motor press paper feeding structure as well as the length of the wrapping paper can be increased twice while the bag is smooth.Besides, the packing speed and bag length can be continuously adjusted within the rated range and no need to replace parts.
• Application: it is suitable for automatic packing of loose, non-sticky and fine granular materials in food, medicine and chemical products. For example: soup, granule,desiccant, monosodium glutamate, sugar, cereal milk power, soybean milk power, sesame paste paste, spade power , monosodium glutamate, condiment and all kinds of granule material packaging.

Specifications

Before Buying

¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯¯

- Propose before buying the granule sachet pouch packing machine:

1) What’s packaging material?

(In order to select the appropriate metering device)

2) What’s the per bag packaging capacity?

(In order to select the appropriate metering device)

3) What’s the capacity for the machine (per minute)?

(In order to select the appropriate transmission device)

4) Packaging film width or packing bag size?

(In order to select the appropriate former)

5) Sealing form?

(In order to choose the suitable sealing device)

6) Whether you need additional device or if there are special requirements?

(In order to calculate the right price)

7) If there are special requirements for the power?

(The default configuration: 200V 50Hz / 380V 50Hz)

Features:

1. Micro computer with English button of this automatic granule packing machine, easy to operate.
2. Buffer design equipped with this granule packaging machines, design for big volume.
3. Granule packing machine with bucket chain elevator, which can conveyor the food into bag forma for finally sealing.
4. This Auto granule package machine could pack the M shape bag, which is very popular in the market now.
5. The process of bag making, measuring, filling, sealing, cutting, and counting can be done automatically.
6. The part where is contact to the material is made of stainless steel. Fully stainless steel cover is available.
7. Inverter and power switch are all imported with advanced technology.
8. Optional languages screen display, easy and simple operation.
9. Bag-making with precise technology enables the error less than ±o.5um.
10. High-sensitivity photoelectric color tracing and digital input of cutting position get more accuracy.
11. Intelligent temperature controller and excellent heat balance make all kinds of packaging materials possible with good performance, low noise, clear cutting pattern and strong seal ability.
12. Packaging speed and length of bags can be set to some extent without parts changing.
13. Equipped with screw rod device enables the changing of packing volume anytime; Loss reducing and productivity improving.
14. Alarming function for specific output; automatic display of packaging speed.
15. Optional coding device for lot number and date printing.
16. Flat cutting, pattern cutting, linking cutting can be realized by changing the tools; easy operation with smooth bags.

Packing material:

Several kinds of heat-seal lamination, such as PET/Plated AL/PE PET/PE, Nylon, etc.
