Pharmaceutical Internal External Circulation Emulsifying Machine Vacuum Double Way Mixing
Pharmaceutical Internal External Circulation Emulsifying Machine Vacuum Double Way Mixing
Description:

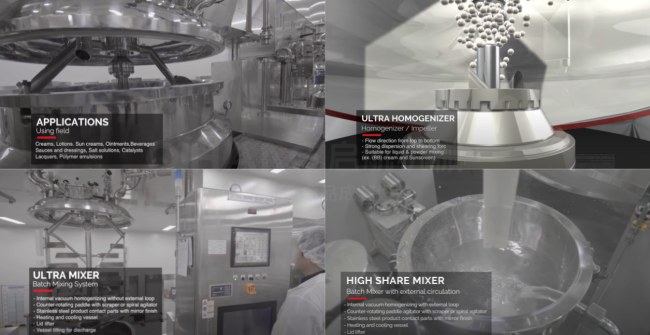

The vacuum homogenizing emulsifier with internal and external circulation is suitable for the production of high viscosity materials such as foundation, cream, toothpaste and so on. Its biggest feature is: the internal and external circulation homogenizer can make the material work in the state of internal circulation and homogenization, so that the material can fully reach the emulsification effect.
Specification:
| Specification |
Working Volume (L) |
Heating Method (optional) |
Diamension (m) |
Weight (kg) |
| QHE-50 | 50 |
Electric heating or steam heating
|
2.6*2.4*2 | 650 |
| QHE-100 | 100 | 2.8*2.5*2.2 | 850 | |
| QHE-200 | 200 | 3*2.8*2.3 | 1100 | |
| QHE-500 | 500 | 3.3*3*2.5 | 1500 | |
| QHE-1000 | 1000 | 4.2*3.5*3.8 | 2500 |
Performance and characteristics:
1. The homogenizing motor is two-speed, low-speed 1500 rpm is used for low-speed homogeneous discharging, and high-speed 3040 rpm is used for high-speed homogenization.
2. The continuous work has a large processing capacity, which can be discharged in a uniform manner, and can also be discharged with a positive pressure in the main boiler, which is convenient and fast.
3. Simple operation and better emulsification and homogenization effect.
Function:
Daily Chemical & Cosmetics Industry:
1. Such as baby cream, skin cream face cream, shaving cream, shaving cream, cream shampoo, toothpaste, cold cream, sunscreen cream, face cleanser, moisture cream, detergent, shampoo etc;
2. Food Industry: Sauce, cheese, oral, nutrition, infant food, chocolate, sugar and so on., tomato paste etc;
3. Pharmacy Industry: Latex, emulsions, salves (ointments), oral syrup, liquid. etc;
4. Chemical Industry: Latex, sauce, saponification products, paints, coatings, resins, adhesives, lubricants and the like.
