Cosmetics Detergent Lotion Making Equipment Emulsifier electrical control

Price Negotiable
Price: Negotiation
MOQ: 1 set
Delivery Time: 2-3 weeks
Brand: Qihang
Product Description



Factory Price for Sale Cosmetics Detergent Lotion Cream Making Equipment Emulsifier

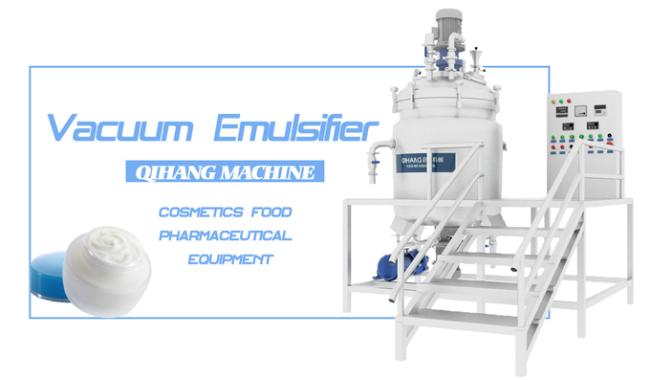

Vacuum Emulsifier Introduction





Fixed-type emulsification machine is for large-volume production of products, fixed means that its lid is connected with the pot body and can not be separated. Fixed Vacuum emulsifier mainly by the pretreatment pot, the main pot, vacuum pumps, hydraulic, electrical control systems and other components. The material will be sucked into the main pot for mixing, homogeneous emulsification after been fully dissolved in Water pot and the oil pot. Its main function is the same as lift-type emulsifier with shear, emulsification function. Mainly used in biomedicine; food industry; day care products; paint inks; nano-materials; petrochemicals; dyeing auxiliaries; paper industry; pesticides and fertilizers; plastics and rubber.



Model

Capacity Emulsify Agitator Outside Dimension total power steam/electric heating
Main Pot Water pot Oil pot KW r/min KW r/min Length Width Height
100 100 80 50 2.2-4


1440/

2800


1.5 0-63 1800 2500 2700 8/30
200 200 160 100 2.2-5.5 2.2 0-63 2000 2750 2800 10/37
300 300 240 150 3-7.5 3 0-63 2300 2950 2900 12/40
500 500 400 250 5.5-8 3-4 0-63 2650 3150 3000 15/50
800 800 640 400 7.5-11 4-4.5 0-63 2800 3250 3150 20/65
1000 1000 800 500 7.5-11 4-7.5 0-63 2900 3400 3300 29/75
2000 2000 1600 1000 11-15 5.5-7.5 0-63 3300 3950 3600 38/92
3000 3000 2400 1500 15-18 7.5-11 0-63 3600 4300 4000 43/120



Structure Characteristics of the Vacuum Emulsifier







* Sufficient emulsification for the high adherence (over 5000 C.P.S.)
* The diameter of the emulsified grain can reach 2-5μm.
* Adopt high frequency vacuum material sucking device, convenient to operate.
* Made of stainless steel, healthful and axenic in operation.
* Easy to clean.
* The newest shearing and cutting homogenizing machine of non-clearance ceramic can make the diameter of the emulsified material reach 0.5μm.

* The machine is provided with vacuum, hydraulic pressure, heating, cooling and other functions.







tag: vacuum emulsifier, cosmetics making machine, cream lotion making equipment
