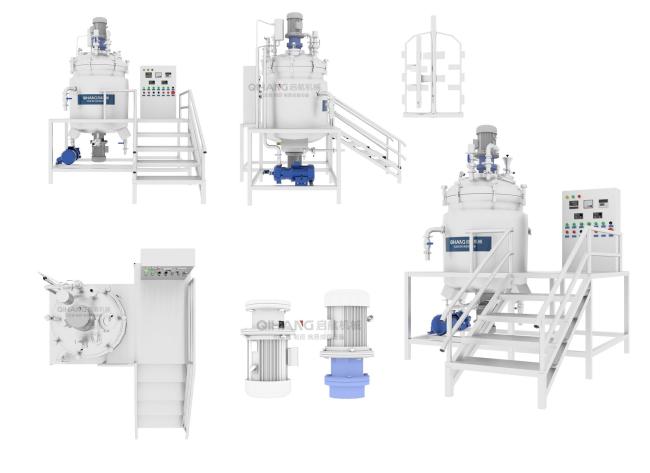

Fixed-type emulsification machine is for large-volume production of products, fixed means that its lid is connected with the pot body and can not be separated. Fixed Vacuum emulsifier mainly by the pretreatment pot, the main pot, vacuum pumps, hydraulic, electrical control systems and other components. The material will be sucked into the main pot for mixing, homogeneous emulsification after been fully dissolved in water pot and the oil pot. Its main function is the same as lift-type emulsifier with shear, emulsification function. Mainly used in biomedicine; food industry; day care products; paint inks; nano-materials; petrochemicals; dyeing auxiliaries; paper industry; pesticides and fertilizers; plastics and rubber.

Specification of the Fixed Type Vacuum Emulsifier

Main Boiler

Water Boiler

Oil Boiler

Scraping

Homogenizer

Power of Water and Oil Boiler

Hydraulic Lifting

Tilting System

Vacuum Pump Power

L

L

L

KW

KW

KW

KW

KW

KW

5

0.18

0.75

0.75

0.4

10

8

5

0.18

1.1

0.18

0.75

0.4

20

18

10

0.37

1.5

0.18

0.37

0.75

50

40

25

0.75

2.2

0.18

0.37

0.37

1.5

100

80

50

1.5

4

0.75

0.75

0.75

1.5

200

170

100

2.2-3

5.5

1.5

1.5

0.75

2.2

300

250

150

2.2-4

5.5

2.2

1.5

0.75

2.2

500

420

250

5.5-7.5

7.5

2.2

2.2

1.1

3

1000

800

500

7.5-11

11

4

2.2-4

1.5

4

2000

1600

1000

11

18.5

5.5

4

1.5

7.5

1. The triple mixing adopts the imported frequency inverter for speed adjustment, which can meet different technological demands.
2. The homogenizing structure is made through German techology. The machine adopts the improted double-end mechanical seal effect. The maximum emulsifying rotation speed can reach 3500rpm and the high shearing fineness can reach 0.2-5um.
3. The vacuum defoaming can make the materials meet the requirement of being aseptic. The vacuum materials vacuum sucking can avoid dust.
4. The main boiler lid can adopt lifting system, it is easy to clean and the cleaning effect is more obvious, the main boiler can adopt tilting discharge.
5. The boiler body is welded with 3 layer imported SS plate, tank body and pipes adopts mirror polish whcih meet the GMP standard.
6. According to process requirement, the tank body can heating and cooling the electric heating.
7. To ensure the stability of whole machine, the machine adopt the imported electric appliances which can meet the international standards.
