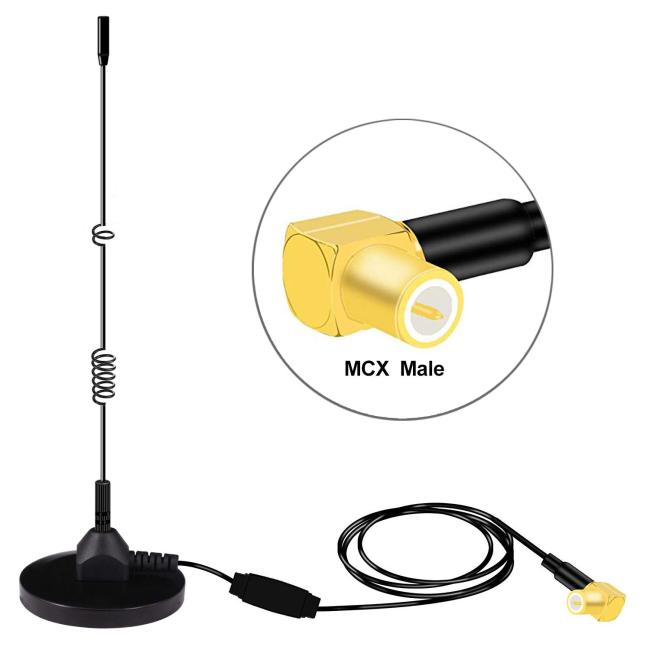

MCX Magnetic Radio Antenna Combined Vehicle Mounted AM/FM DAB Screw Thread
MCX Magnetic Antenna Vehicle-Mounted Radio Antenna AM/FM+DAB Digital Radio Combined Antenna For DAB Car Radio DAB Radios
Product Description
Specifications:
DAB
Frequency: DAB:170~230MHz 1450~1500MHz
Impedance:50 Ω
Amplification:20dB
VSWR:≤2.0:1
Connector: SMB Female
Cable:5m RG174
AM/FM
AM: 530k~1710KMz
FM: 87.5-108 MHz
Impedance: 50 Ω
Amplification:20dB
VSWR:≤2.5:1
Connector: DIN Male
Cable: 5m RG174
Voltage: 12v direct feed for both DAB an AM/FM
Current Consumption : 50mA
Advantages:
Very neat and stylish.

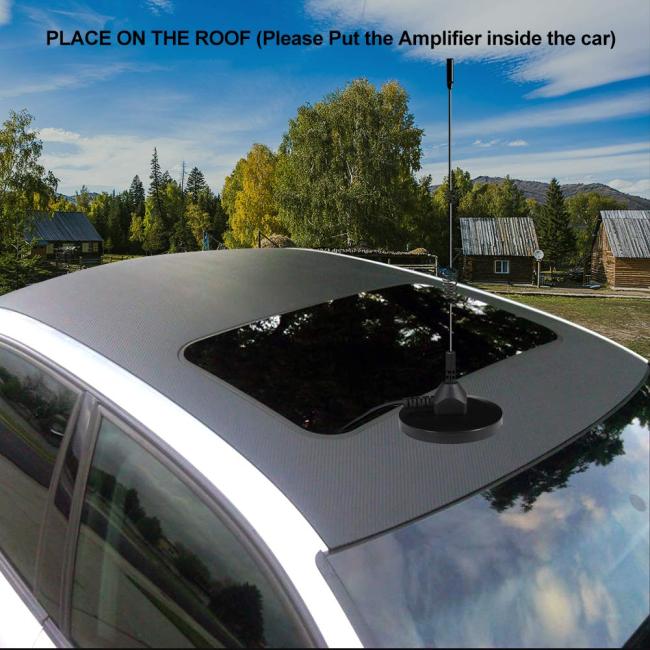

Roof mount DAB car radio aerial.
No need to unscrew mast for the carwash, etc.
Can also be fitted to wing, boot lid,etc. (at slight expense of performance)
Vandal-resistant.
Amplified
Specifications:
| NO | Item | Specifications | PostEnvironmental Tolerance |
| 1 | AM/FM(MHz) Frequency Range | AM530k~1710KMz FM87.5M~108MHz |
±2.5 |
| 2 | DAB(MHz) Frequency Range |
170~230MHz 1450~1500MHz |
±3.0 |
| 3 |
Band Width(MHz) (Return Loss≤-10dB) |
≥10 | ±0.5 |
| 4 | V.S.W.R(in Center Frequency) | ≤1.5 | ±0.5 |
| 5 |
Gain (Zenith)(dBi type) (with 70mmSquare GND plane) |
15 | ±3 |
| 6 | Amplifier Gain | 15dB±2 | ±2 |
| 7 | Working Voltage | 12V | ---- |
| 8 | Impedance(Ω) | 50 | ---- |
| 9 | Current | 45~60mA | ±2 |
Product Details:
