AISI 316 Stainless Steel Sheet BA 2B Stainless Steel Plates Kitchenware
AISI316 stainless steel sheet BA 2B stainless steel plates
316 stainless steel sheet
316 stainless steel, 18cr-12ni-2.5 Mo due to the addition of Mo, so its corrosion resistance, atmospheric
corrosion resistance and high temperature strength is particularly good, can be used in harsh conditions;
Excellent work hardening (non-magnetic).Equipment for the production of seawater, chemicals, dyes,
papermaking, oxalic acid and fertilizers;Photography, food industry, coastal facilities, ropes, CD rods,
bolts, nuts
1. Product information
| Product Name |
316 stainless steel sheets
|
| Material |
300 series
|
| Technique |
Cold rolled or hot rolled
|
| Thickness |
Cold rolled:0.3-3(mm) Hot rolled:3-50(mm) |
| Width |
1000mm - 6000mm or as your requirements
|
| Length |
As your requirements
|
| Surface |
BA / 2B / 2D / HL / 8K / Mirror
|
| Application |
Foodstuff, metallurgy, electron, petroleum,boiler Medical equipment, fertilizer etc
|
| Certifactions |
ISO/SGS/BV
|
2. Chemical composition
C≤0.08,Si≤1.00,Mn≤2.00,P≤0.045,S≤0.03,Ni:10.0-14.0,Cr:16.0-18.5,Mo:2.0-3.0
Mechanical properties of 316 stainless steel, tensile strength (Mpa) 620 MIN, yield strength (Mpa) 310 MIN,
elongation (%) 30 MIN, area reduction (%) 40 MIN, density of stainless steel 316 8.03g /cm3
3. Steel grade corresponding list
| Grade | China(GB) | America(AISI/ASTM) | Germany(DIN) | Japan(JIS) |
| 201 |
1Cr17Mn6Ni5N |
201 | - | SUS201 |
| 304 |
0Cr18Ni9 |
304 |
X5CrNi18.9 |
SUS304 |
| 304L |
00Cr18Ni10 |
304L |
X2CrNi18.9 |
SUS304L |
| 316 |
0Cr17Ni12Mo2 |
316 |
X5CrNiMo18.10 |
SUS316 |
| 316L |
00Cr17Ni14Mo2 |
316L |
X2CrNiMo18.10 |
SUS316L |
| 321 |
1Cr18Ni9Ti |
321 |
X12CrNiTi18.9 |
SUS321 |

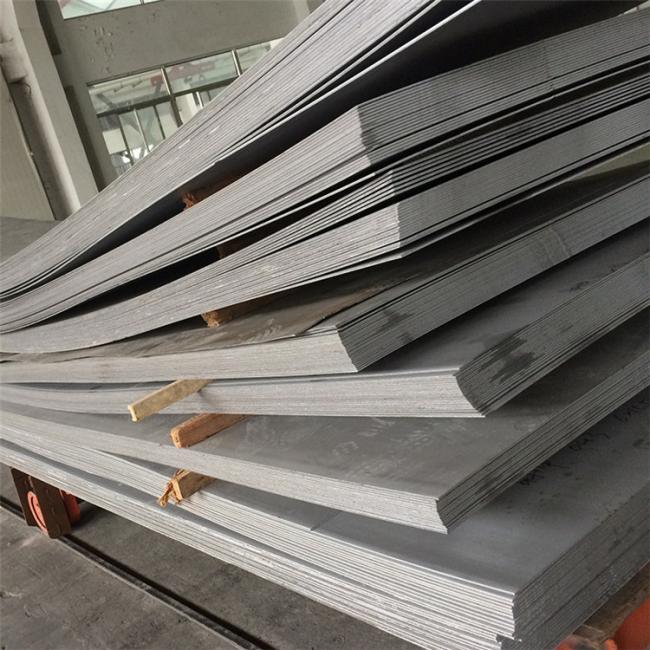

4. Product pictures
5. Application
Equipment for the production of seawater, chemicals, dyes, papermaking, oxalic acid and fertilizers;Photography, food industry, coastal facilities, ropes, CD rods, bolts, nuts
6. Mechanical properties
| Tensile strength (Mpa) | 620 MIN |
| Yield strength (Mpa) | 310MIN |
| Elongation (%) | 30MIN |
| Area reduced (%) | 40MIN |
| Density | 8.03 g/cm3 |
6. FAQ
Q1: Are you trading company or manufacturer ?
A: We are factory for processing service and have own houseware.
Q2: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What are your payment terms?
A: Our payment method is 30% byT/T and 70% payment before delivery.
