TIG brand factory of Precision casting Drilling tooth Excavator Bucket Tooth 25T For Drilling Oil Equipment
TIG brand factory
drilling teeth 25T bucket teeth bucket tips 25T tooth with durable material for earth moving

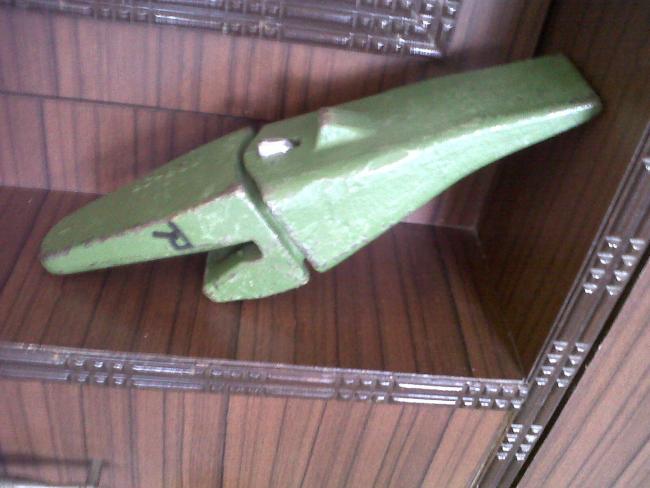

Drilling teeth 25T used for drilling oil
drilling teeth :25 T
weight : 1.85kgs
Adapter: 3kgs
much more teeth
| TEETH AND ADAPTERS | |||
| P/N | TYPE | U/W KG | Model |
| 1U3201 | SHORT | 1.45 | J200 |
| 6Y6221 | 2 | J225 | |
| 1U3251 | 2.7 | J250 | |
| 1U3301 | 4 | J300 | |
| 1U3351 | 5.5 | J350 | |
| 7T3401 | 8.2 | J400 | |
| 9W8451 | 11.5 | J450/460 | |
| 9W8551 | 15.5 | J550 | |
| 6I6601 | J600 | ||
| 1U3202 | LONG TOOTH | 1.35 | J200 |
| 6Y3222 | 2.2 | J225 | |
| 1U3252 | 2.9 | J250 | |
| 1U3302 | 4.3/4.7 | J300 | |
| 1U3352 | 5.8/6.0 | J350 | |
| 7T3402 | 8.9/9.5/10.6 | J400 | |
| 9W8452/ 1U3452 | 12.4/12.65 | J450 | |
| 9W8552 /1U3552 | 19.5 | J550 | |
| 6I6602 | 34 | J600 | |
| 1U3202P | ROCK CHISEL | 1.35 | J200 |
| 6Y3222RC | 2.8 | J225 | |
| 1U3252RC | 3.5 | J250 | |
| 1U3302RC-L | 4.95 | J300 | |
| 1U3352RC-2 | 7 | J350 | |
| 7T3402RC / 7T3402RC-2 | 9.5/9.88 | J400 | |
| 9W8452RC/ 1U3452RC-3 | 13.4 | J450 | |
| 9W8552RC | 24 | J550 | |
| 6I6602RC | 39 | J600 | |
| 1U3352RCH / 1U3352RC | HEAVY DUTY PENETRATION | 8.2 | J350 |
| 9W8452RCH / 1U3452RC | 15 | J450/460 | |
| 8E4222 | HEAVY DUTY LONG TOOTH | 3.1 | J220 |
| 9N4252 | 4.2 | J250 | |
| 9N4302 | 5.5 | J300 | |
| 9N4352 | 8.6 | J350 | |
| 8E4402 | 11.5 | J400 | |
| 9N4452 | 17.5 | J450 | |
| 9N4552 | 26 | J550 | |
| 1U3209 | PENETRATION | 1.2 | J200 |
| 6Y8229 | 2 | J225 | |
| 9J4259 | 2.5 | J250 | |
| 9J4309 | 3.6 | J300 | |
| 9J4359 | 5.5 | J350 | |
| 6Y7409 | 8.8 | J400 | |
| 9W8459 | 9.7 | J450/460 | |
| 9W8559 | 15.5 | J550 | |
| 135-9300/4T2303RP | RP | 9 | J300 |
| 144-1358/4T2353RP | 10 | J350 | |
| 135-9400/7T3403RP | 17 | J400 | |
| 138-6459/W1453RP | 23 | J450/460 | |
| 138-6552/9W1553RP | 29 | J550 | |
| 4T2203/9J4203 | HEAVY DUTY ABRASION | 1.8 | J200 |
| 4T2253 | 3.5 | J250 | |
| 4T2303 | 5.3 | J300 | |
| 4T2353 | 7.3 | J350 | |
| 9W1453 | 14 | J450/460 | |
| 9N4253 | HEAVY DUTY ABRASION | 4.55 | J250 |
| 9N4303 | 7.2 | J300 | |
| 9N4353 | 11 | J350 | |
| 7T3403 | 13.5 | J400 | |
| 9N4453 | 21.4 | J450/460 | |
| 6Y2553 | 31 | J550 |
·A comprehensive range is available to suit:
Komatsu , Daewoo , ,Hensley,Hitachi, H & L,Hyundai,·
· JCB.· Bofors· · Case· Kobelco· Liebherr
· Bob
Casting is a manufacturing process by which a liquid material is usually poured into a mold, which contains a hollow cavity of the desired shape, and then allowed to solidify. The solidified part is also known as a casting, which is ejected or broken out of the mold to complete the process. We use the precision casting /lost wax casting to product our bucket teeth

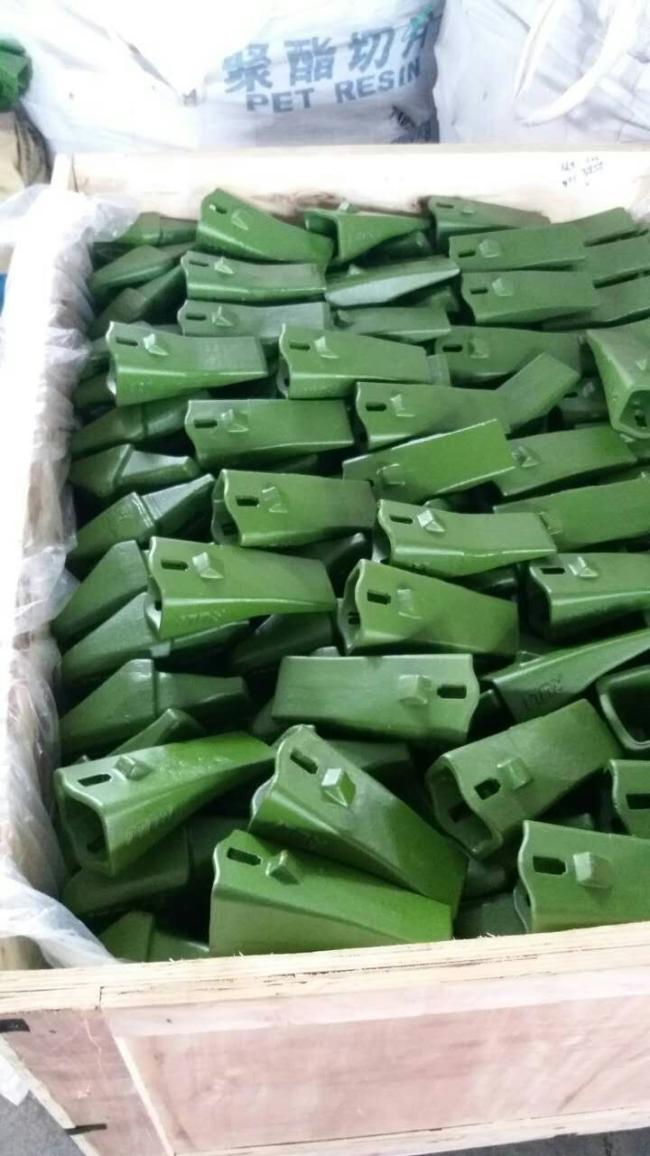

Casting Bucket Teeth
Material 1# Hardness :48-52HRC Impact Value :>15J
Material 2# Hardness :48-52HRC Impact Value :>20J
welcome for quotation !
