90 Degree ExⅡCT4 200Nm Quarter Turn Electric Actuator

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: 7 working days

Brand: DCL

Product Description

200Nm Explosion proof valve actuator , quarter-turn electric actuator

Features

Name: Explosion Proof Valve Actuator
Type: On-off, Modulating
Type: Quarter Turn Electric Actuator
Motor Power: 25W/30W/40W
Material Of Seal Surface: Soft Sealed
Connection Form: Multi-Flange
Power: DC24V/AC110V/AC380V/AC220V
Standard Time/Torque: 30S/200Nm
Protection Class: IP67
Ambient Temperature: -20℃~+60℃
Medium: Gas/Oil/Water/Other
Rated Current: 0.19A~3.12A

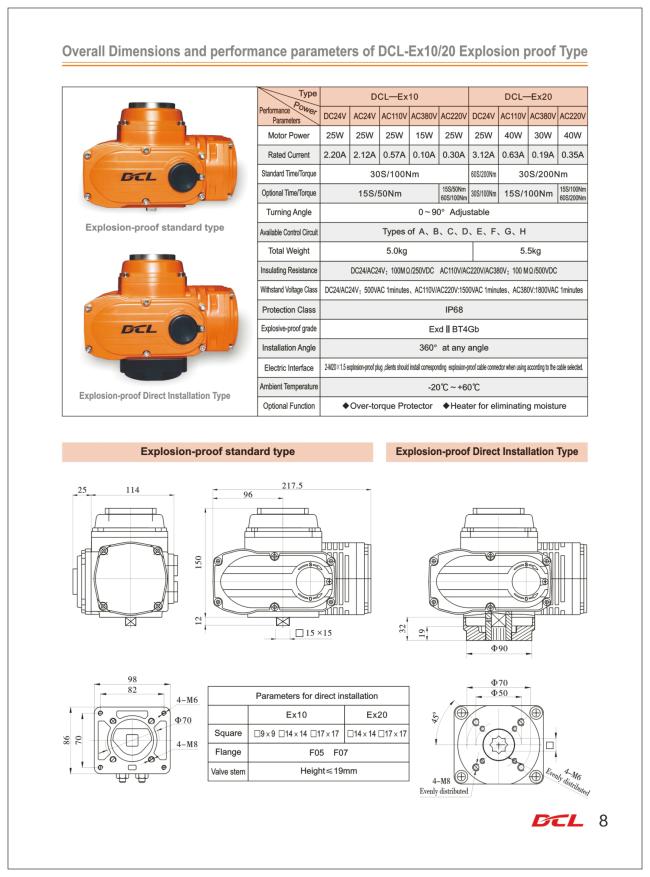

Specification

Type	DCL-Ex20
Power	DC24V	AC110V	AC380V	AC220V
Motor Power	25W	40W	30W	40W
Rated Current	3.12A	0.63A	0.19A	0.35A
Standard Time/Torque	60S/200Nm	30S/200Nm
Optional Time/Torque	30S/100Nm	15S/100Nm		15S/100Nm 60S/200Nm
Turning Angle	0～90° Adjustable
Available Control Circuit	Type of A,B,C,D,E,F,G,H,
Total Weight	5.5kg
Insulating Resistance	100MΩ/250VDC	100MΩ/500VDC
Withstand Voltage Class	DC24V: 500VAC 1 minute,AC110V/AC220V: 1500VAC 1 minute,AC380V: 1800VAC 1 minute
Protection Class	IP67
Expiosive-proof grade	ExⅡCT4Gb
Installation Angle	360° at any angle
Electric Interface	2-M20×1.5explosion-proof plug,clients should install corresponding explosion-proof cable connector when using according to the cable selected.
Ambient Temperature	-30～+60℃
Optional Function	Over-torque Protector/Heater

Description:

Small volume ,light weight ,easy installation and maintenance.Simple and compact structure ,90 degree rotation ,rapid in opening and closing.Small torque while in operating, light and handy .Flow characteristics tending to straight line, good modulating performance.
Multiple control signals, switch control. Proportional (modulating type) control: 2-10VDC or 4-20mA. Feedback output can be selected with 4-20mA, auxiliary switch and potentiometer (0-1k)
