80Nm / 2S 90W Quick Open Electric Actuator

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: 7 working days

Brand: DCL

Product Description

Features

1/4 turn operation with adjustable mechanical limits
Two auxiliary limit switches to confirm valve position
Antirust passivation aluminum alloy enclosure with external power coated
Non-ventilated motor with high starting torque and small inertia force
All metal gear train and bronze alloy worm gear drive
Visual valve position indicator
Manual override
Standard ISO5211 direct installation

Description

DCL quick open electric actuators can add two SPDTs to confirm valve positions. All limit switches are made by Omron Japan, with 100,000 times life cycles and above. Patent designed block adjustment from upper side, not from side end, to save field adjustment time. All electronics and wiring components such as cables and terminals are tested and certified by CSA per UL/CSA standard, tested by SGS per CE standard, CE marked.

Specification

Type	DCL-K40
Power Supply	AC24V AC110V AC220V
Motor Power	90W
Max Current	6.80A 1.12A 0.57A
Torque/Time	80Nm/2S 160Nm/4S 330Nm/8S

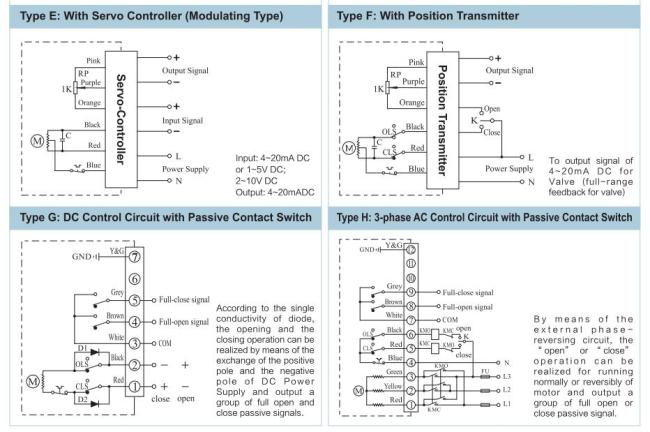

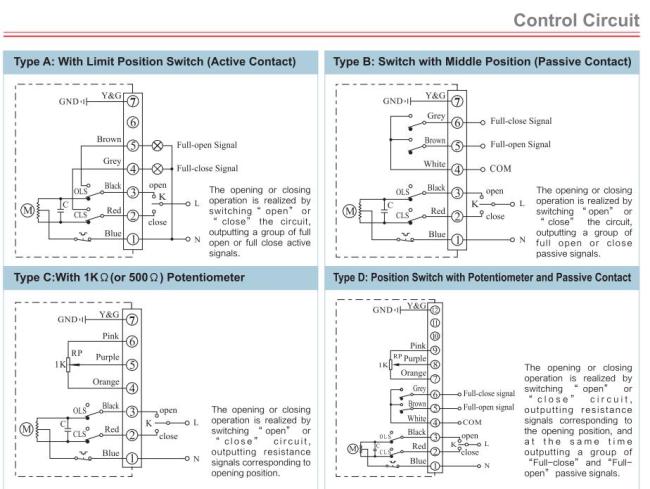

Avaliable control circuit	Types of A/B
Turning Angle	0～90° Adjustable
Total Weight	9.5kg
Insulating Resistance	100MΩ/500VDC
Withstand Voltage Class	AC24V:500VAC 1minute AC110/220V:1500V 1minute
Protection Class	IP67
Installation Angle	360° at any angle
Electric Interface	Two G1/2 Wate-proof Cable Connectors
Ambient Temperature	-25～+55℃
Optional Function	Heater/Dome indicator/Handle
