Under DN300 120W Electric Butterfly Valve Actuator
120W Electric butterflyl valve actuator with ISO 5211 direct installation for valve under DN300

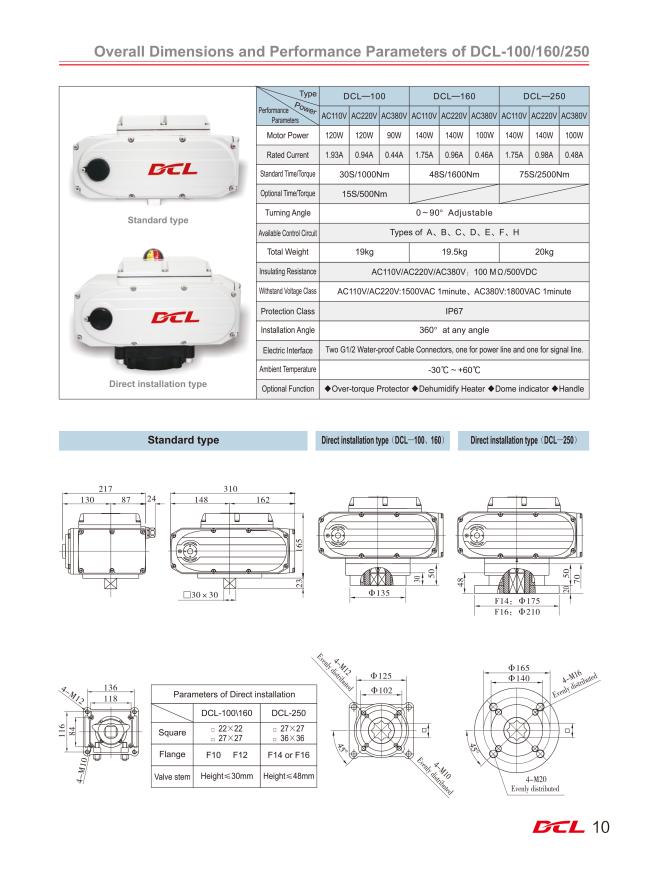

| Performance Parameters | |||||||||
| Type | DCL-100 | DCL-160 | DCL-250 | ||||||
| AC110V | AC220V | AC380V | AC110V | AC220V | AC380V | AC110V | AC220V | AC380V | |
| Motor Power | 120W | 120W | 90W | 140W | 140W | 100W | 140W | 140W | 100W |
| Rated Current | 1.93A | 0.94A | 0.44A | 1.75A | 0.96A | 0.46A | 1.75A | 0.98A | 0.48A |
| Standard Time/Torque | 30S/1000Nm | 48S/1600Nm | 75S/2500Nm | ||||||
| Optional Time/Torque | 15S/500Nm | ||||||||
| Turning Angle | 0～90° Adjustable | ||||||||
| Available Control Circuit | Type of A,B,C,D,E,F,H | ||||||||
| Total Weight | 19kg | 19.5kg | 20kg | ||||||
| Insulating Resistance | 100MΩ/500VDC | 100MΩ/500VDC | 100MΩ/500VDC | ||||||
| Withstand Voltage Class | 1500VAC 1minute | 1800VAC 1minute | 1500VAC 1minute | 1800VAC 1minute | 1500VAC 1minute | 1800VAC 1minute | |||
| Protection Class | IP67 | ||||||||
| Installation Angle | 360° at any angle | ||||||||
| Electric Interface | Two G1/2 Wate-proof Cable Connectors,one for power line and one for signal line | ||||||||
| Ambient Temperature | -25～+55℃ | ||||||||
| Optional Function | Over-torque Protector/Heater/Dome indicator/Handle | ||||||||
specification
| Model | DCL-100 |
| Power | 110VAC/220VAC/380VAC |
| Motor power | 120W/120W/90W |
| Rated Current | 1.93A/0.94A/0.44A |
| Standard time/Torque | 30s/1000Nm |
| Optional Time/Torque | 15s/500Nm |
| Turning Angle | 0~90° Adjustable |
| Avaliable Control Circuit | Types of A,B,C,D,E,F,H |
| Total weight | 19kg |
| Protection Class | IP67 |
| Installation angle | 360° at any angle |
| Electric interface | Two G1/2 water-proof Cable connectors, one for power line and one for signal line |
| Ambient Temperature | -25℃~+55℃ |
| Optional Fuction | Over-torque Protector/Dehumidify Heater/ Dome indicator/Handle |
Company profile
Dynamic Corporation Limited is a stock holding/high-tech enterprise with self-support export authority, which is engaged in research, development, manufacture and sale for electric actuator, electric valve and its automatic control system. The main leading product, DCL series electric actuator is featuring the compact construction, exquisite appearance, smart control, remarkable performance, superior quality, easy operation and so on.
Application
DCL series electric actuator is widely used in the industrial field, such as petroleum, chemical, electric power, smelting, energy, pharmaceutical, paper-making, water treatment, food, brewage, shipbuilding and the automation system for the building, and is fully in customers' good graces and trust-worthy. Many customers in various industrial lines with their practice over the years confirm that DCL series products of electric actuator present outstanding in reliability, durability and after-sale service, as well as in quality.
