In - Ground 5T Car Lifting Machine big scissor lift

In-ground wheel alignment scissor lift DJ001 / car lifting machine

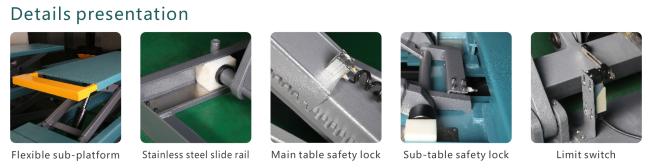

DJ001 In-ground wheel alignment scissor lift features:

1) Designed as in-ground structure to maximize your workshop.
2) Independent control box, low voltage control, good safety performance.
3) Hydraulic volume synchronous oil cylinder, synchronized and stable operation of platform.
4) Adopt the double safety device of hydraulic lock and mechanical double-tooth insurance claw, drop automatically, through the locking operation, make insurance claw to achieve Reverse-backing positioning, safe and reliable.
5) Adopt hydraulic failure and overload safety valve protection.
6) Adopt throttle device of oil route, when oil pipe is bursting, the machine will not drop fast.
7) Adopt the oil-free super wear-resistant material sliding block.
8) Adopt the Italy, Germany, Japan and other high-quality hydraulic, electrical components.
9) Adopt the integral type base; strengthen the capability of horizontal adjustment, horizontal accuracy can be adjusted accurately, especially suitable for for-wheel location detection.
10) Adopt emergency manual lowering device in the power failure.
11) Receive 115% dynamic and 150% static testing.
12) Accord with standard of European Union CE.

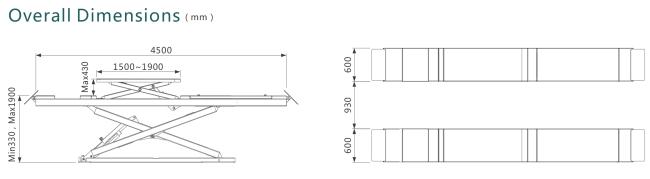

DJ001 In-ground wheel alignment scissor lift technical specification:

Product details:

Used for lifting light vehicles under 5 tons for vehicle test, service and cleaning.It can also be used as a lifting device in production lines, for material transportation and work piece assembly.

Quality management
To guarantee high quality and efficient management, we have passed ISO9001 quality management system certificate and the CE certification;
All of our products are 100% inspected before shipment.Our whole manufacturing processes are under a very serious and strict system in our company.Calibration is done for the wheel aligner before deliery .
Product warranty
We provide 12 months trouble-free warranty and online support for all of our machines. We will provide the exclusive service forever. We are standing by for any of the quality problems on the machine we produce .
