300KW Industrial Natural Gas Generator With 380KVA Backup Power Supply
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
30days
Brand:
SevenPower
Product Description
Industrial Natural Gas Generator Set 300KW Rated Power 380KVA Backup Power Supply
Main Specifications
| Genset | Generator Set Model | SP300N |
| Rated Power (kW/kVA) | 300/375 | |
| Rated Voltage (V) | 400 | |
| Rated Frequency (Hz) | 50 | |
| Rated Current (A) | 540 | |
| Power factor | 0.8(lag) | |
| Rated Speed (r/min) | 1500 | |
| Phase and connections | 3P4W,star connection | |
| Cooling | Closed water-cooling | |
| Start | DC24V electric start | |
| Speed governing | Electric | |
| Voltage regulating | Auto | |
| Excitation | Brushless,self-excitation | |
| Insulation | H | |
| Protection | IP21 | |
| Control model | Manual or auto | |
| Radiator design temperature (℃) | 45 | |
| Fuel | Natural gas(no free water,sulphur content≤200mg/Nm3) | |
| Gas inlet | 2-3kPa | |
| Gas inlet temperature (℃) | -10—25 | |
| Oil consumption (g/kW.h) | 0.8 | |
| Gas consumption (Nm3/kW.h) | 0.3 | |
| Noise level | ≤110 dB(A) | |
| Overhaul | 15000hours |

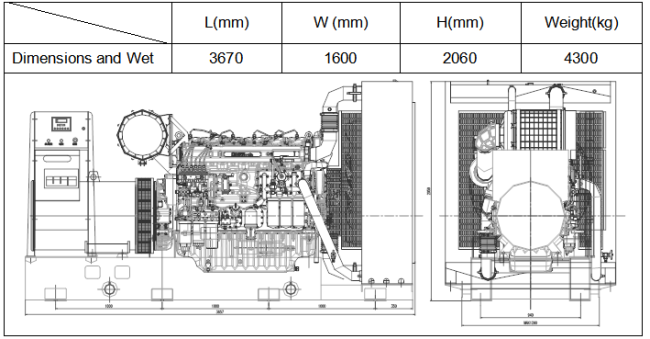

Dimensions and Weight

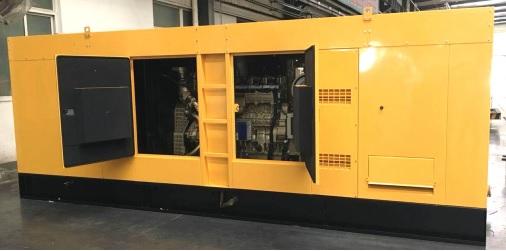

With soundproof canopy
Installation On-site
Scope of supply
Generator set:
natural gas engine (including electronic governor, actuator, ignition system, radiator, air filter), Alternator, control panel, common base (including anchor bolt), exhaust bellows.battery charger;Muffler and piping, spare parts, tools, technical documents.
Optional Configurations
For more information about the 300KW Genset, please consult with your sales representative.Thanks.
