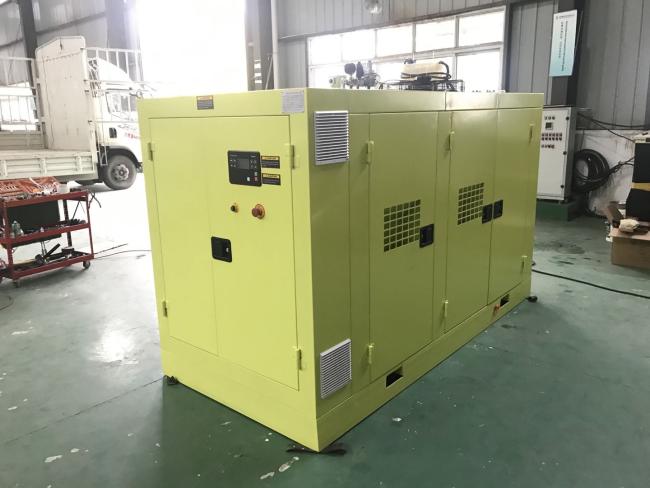

Electric Start Natural Gas Generator 50Hz 120kw 150kva For Water Heating
50Hz Electric Start Natural Gas Cogenerator Generator 120kw 150kva For Hot Water Heating
The efficiency of traditional generating set is 30%~40% only, while CHP recover heat from both engine jacket water and exhaust, with total efficiency going up to 80%~95%, which greatly improves the energy efficiency and reduces energy consumption and air pollution. Traditional boilers can be replaced by CHP, and CHP can be widely used at heating systems in communities, schools, hospitals, hotels, and swimming pools to achieve distributed energy supply.
120KW CHP Main Specifications
| Model | SP120N | |
| fuel | — | Natural Gas |
| marks | — | Synchro CHP |
| electrical output(KWe) | kVA/kWe | Continuous Power |
| 150/120 | ||
| thermal output(KWe) | kWt | 177 |
| electrical efficiency | % | 34.1% |
| thermal efficiency | % | 50.4% |
| overall efficiency | % | 84.5% |
| frequency | Hz | 50 |
| voltage | V | 400/230 |
| gas inlet pressure | kPa | 3-5 |
| dimension (soundproof type) | mm*mm*mm | 2600*1550*1650 |
| net weight | kg | 2700 |
| NG consumption | m3/kW.h | 0.297 |
| db(A)@7m | — | 58 |
| Certificate | — | CE |
| water-water heat exchanger | — | SWEP |
| water-exhaust heat exchanger | — | designed by our own factory/made of full stainless steel |
| ignition system | — | Impco |
| speed governor | — | Woodward |
| mixer | — | Venturi type |
| gas filter | — | Madas |
| zero regulator | — | Kromschroeder |
| solenoid valve | — | Kromschroeder |
| gas pressure gauge | — | Dungs |
| Lambda auto control | — | Available on request with extral cost |
| catalyst converter | — | Available on request with extral cost |
| MCB | — | ABB |
| GCB | — | ABB |
Our Packing
Our Hannover Exhibition
Our Showroom In Germany
Our Customers' Visiting
For more information about each CHP, please consult with your sales representative.Thanks.
