Easy Installation Motorized Monitor Lift 100~240V For 15" ~24" Monitors
Motorized Monitor Lift System
| Model No. | PLM-02 | PLM-03 | PLM-04 | PLM-05 |
| For Monitor Size | 15" ~17" | 19" | 21"~22" | 24" |
| Monitor Tilt Angle | 15° in default, 0 ~ 60° is customizable. | |||
| Application |

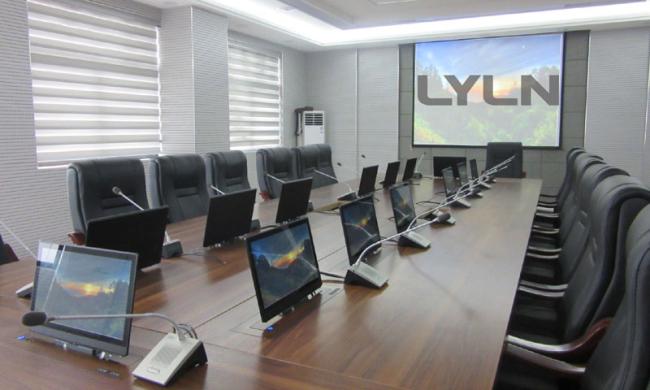

video conference room, boardroom, classroom, training room, bank office system, court, paperless conference system, meeting room with video wall, voting system, etc. |
|||

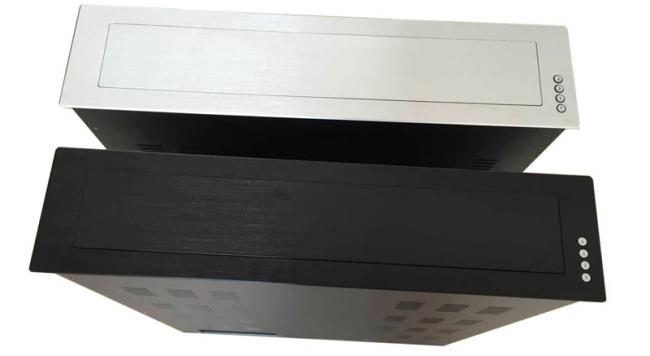

Black and Silver Top Panel
With Anti-pinch Protection System
• designed to hide monitor into conference table automatically after use.
• it comes without a monitor.
• fit for most monitors/all-in-one monitors size at 15", 17", 19", 21", 22", 24".
• top panel is made of brushed aluminium in silver or black.
• monitor cover opens inwards and hide in the lift box automatically before monitor starts to lift up.
• monitor tilt angle: 15°.

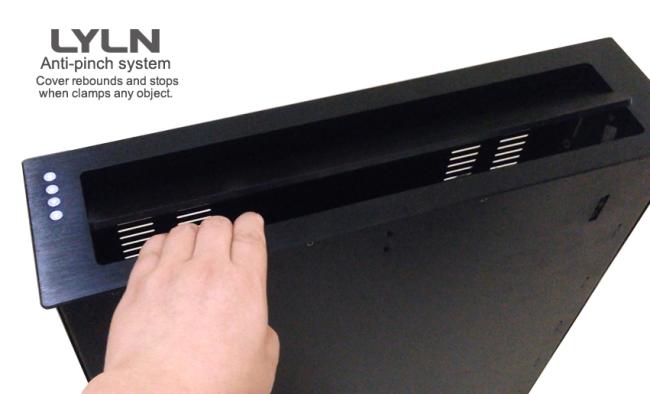

• with anti-pinch system, monitor covers will rebound and stop once it clamps any object, like finger, pencil, etc.
• compatible with most integrated control systems like AMX, crestron, extron, etc.
• communication via RS485/232 protocol.
• monitor power on/off automatically.
• with RF wireless remote controller and manual control board.
• power consumption: 15 watts.
• max. loading capacity: 8.5 KGs

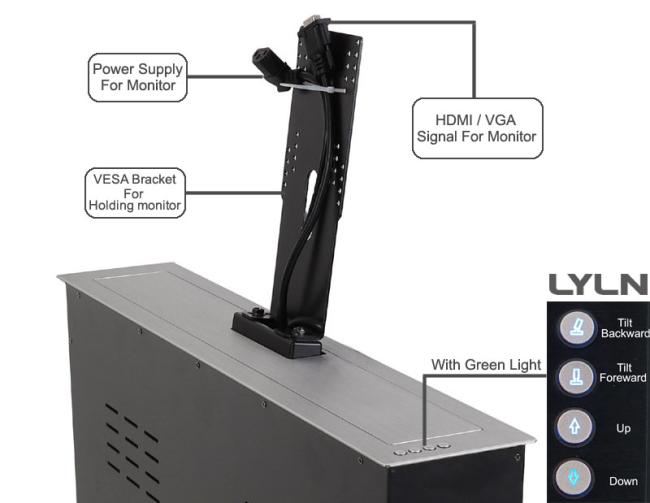

• with VESA brackets for fixing lcd monitors onto the lifts.
• one remote controller can control more lifts at the same time.
• easy installation and easy operation.
