12 To 120 Mesh Fineness Spices Pulverizer Machine 80 To 3000 Kg Per Hr Capacity
Price:
Negotiable
MOQ:
one set
Delivery Time:
25-30 days
Brand:
Brightsail
Product Description
12 To 120 Mesh Fineness 80 To 3000kg Per Hr Capacity Spice Pulverizer
BS series pepper powder machine can be widely used in the crushing of dry and fragile materials in pharmaceutical, chemical, food and other industries. Materials with low softening point and high viscosity are not suitable for this machine.

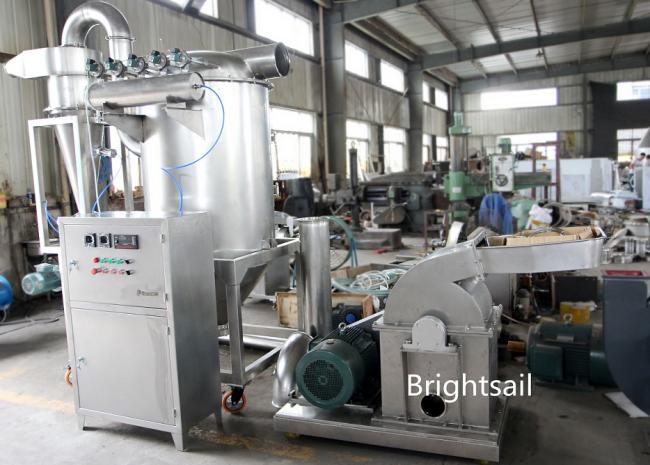

The utility model is composed of a crusher, a cyclone separator, a pulse dust removal box and a blower. It can crush spices and oily materials with oil content less than 20%, and is also suitable for Chinese herbal medicine with high fiber content. The crushing particle size is controlled by the screen, which can realize continuous production at room temperature.
Technical data:chili powder grinder machine
| Model | BS-400 | BS-630 | BS-880 | BS-1000 |
| Capacity(kg/h) | 80-1200 | 400-1800 | 800-2500 | 1000-3000 |
| Fineness(mesh) | 12-120 | 12-120 | 12-120 | 12-120 |
| Main crush motor(kw) | 22 | 37 | 45 | 55 |
| Overall size(L*W*H)(mm) | 5400*1300*2700 | 6800*1300*2700 | 7800*1800*3200 | 8800*2000*3300 |
Working method:chili powder grinder machine
This is a high-speed machine. The patented technology of the utility model uses the relative movement between the fixed plate and the movable hammer to impact and crush the materials under the action of centrifugal force. The target material is crushed by cutting and grinding with high-speed tools. The shape and size of the tool can be selected according to different materials.
Main features:chili powder grinder machine
1. The utility model has the advantages of simple structure and convenient installation and maintenance.
2. Motors, electrical components, bearings and running parts all adopt world advanced famous brands.
3. There is no dust in the production process. Dust can be collected in the dust box.
4. During the production process, the temperature remains normal and will not become hot. Therefore, the color and properties of the material will not change.
5. Grind spices with oil content of 10% - 20%.
