Mini Excavator Digging Bucket Backhoe Drainage Bucket For 1.2-120t PC PC SK HD

Price Negotiable

Price: USD500-3000/SET

MOQ: 1 PCS/SET

Delivery Time: 5-15days

Brand: HUITONG

Product Description

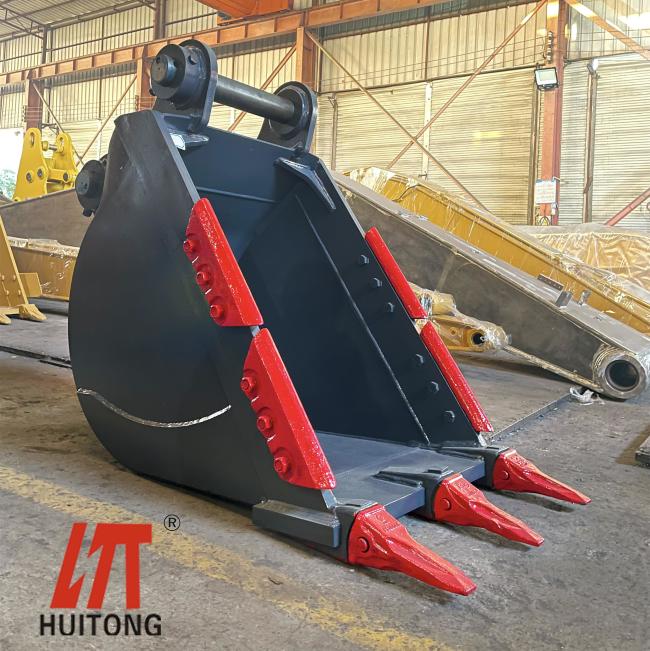

0.1cbm Mini Excavator Digging Bucket Backhoe Drainage Bucket Manufacturer for 1.2-120t PC PC SK HD

Excavator Mini Bucket

Excavator Drainage Bucket also go by Trenching Bucket, is made of standard plate thickness but small in size. The narrow opening widith makes the drainage work more easiler. Moreover, The structure, opening, shape are all customizable according to your working needs

The Drainage Bucket is small than regular buckets but it adopts the same materials instead of using A3 steel plates, which makes it tough and more durable.

Quality CertifiPCion of Steel, Q355B Steel for Structure:

We adopted qualified Q355B steel from top 3 Chinese steel maker. Q355B is the most common used material in the industrial, same as European S355JR, American A57.etc.
Moreover, we also offer options using high strength material such as:NM400, Hardox500 and HG785D.
All steels are adopted from CSG, top 3 steel maker in China.

Material	Code	Hardness(HB)	Extension(%)	Bend Intensity
Alloy Steel	Q355B	163-187	21	355(N/mm2)
Chinese High-Strength alloy	NM400	400	16	1020(N/mm2)
High-Strength alloy	HARDOX-500	470-500	8	1300(N/mm2)

Type	Material	AppliPCion
GD Bucket	Q355B	digging clay, loading sand and gravel, volume loading for packed ground
HD Bucket	Q355B	abrasive soils, compact or dense clay, loose rock and gravel
SD Bucket	Hardox400/500/NM360	shot rocks, Stratified Materials, Quarry, dense clay, etc.
Skeleton Bucket	Q345B	Applied in integrating sieving and excavation of relatively loose materials.
Tilt Bucket	Q355B	The Tilt Function Facilitates Cleaning and Leveling Along Ditches and Banks in an Easy Way
Cleaning Bucket	Q355B	Cleaning work in channels and ditches.
Drainage Bucket	Q355B	Design for drainage project, with less widith and tough material. It's easier to get the job done with professional tool

Reference General Arrangement Drawing

We will make the General Arrangement Drawing according to your needs. In order to ensure the perfect size, all products will be produced after you confirm the final drawing.
