HT manufactures and sells 5-crawl orange peel grab and it suitable for 36-40 ton excavators with good quality.
Production Description
Advantages
1. Driven by hydraulic cylinder. Every grab is driven by a separate cylinder.
2. Excavating constsruction foundation, deep hole or load soil, sand, waste. etc.
3. Excavating and loading on the limited space. (Usualaly work with telescopic boom)
4. Loading, stacking and transportation waste steel, scrape steel, crushed aggregates, saw dust, ballast in iron and steel enterprises, port, wharf, railway station, storage. etc.
| Excavator Hydraulic Polyp Grab | ||||
| Machine Tonnage | Description | Number of Tines | Weight(Kg) | Material |
| 3-5T | Rotating/Non-rotating | 4 | 380/420 | Q345B+NM360 |
| 6-10T | Rotating/Non-rotating | 4 | 570/620 | Q345B+NM360 |
| 11-16T | Rotating/Non-rotating | 5 | 820/880 | Q345B+NM360 |
| 17-20T | Rotating/Non-rotating | 5 | 1080/1180 | Q345B+NM360 |
| 21-24T | Rotating/Non-rotating | 5 | 1200/1300 | Q345B+NM360 |
| 25-30T | Rotating/Non-rotating | 6 | 1320/1450 | Q345B+NM360 |
| 31-35T | Rotating/Non-rotating | 6 | 1450/1600 | Q345B+NM360 |
| 36-40T | Rotating/Non-rotating | 6 | 1680/1850 | Q345B+NM360 |
| 41-45T | Rotating/Non-rotating | 6 | 1950/2150 | Q345B+NM360 |
Material
Steels are being called differently among different countries. Here is the data that might gave you a better understanding of the steel we used for manufacturing HT Rotatable Polyp Grab.

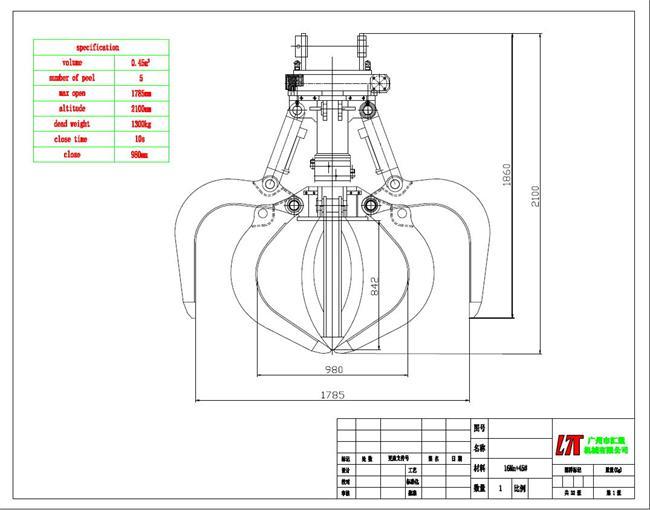

General Arrangement Drawing
