Mini Excavator Rock Bucket Heavy Digging For Komatsu PC60 PC120

Price Negotiable

Price: $780-1500/pcs

MOQ: 1 Pcs

Delivery Time: 8-16 workdays

Brand: Huitong

Product Description

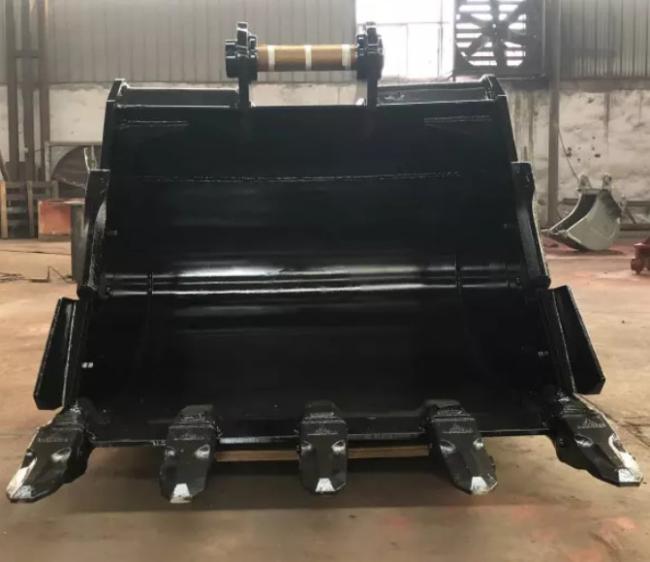

Mini Excavator Rock Bucket Heavy Digging Bucket For Komatsu PC60 PC120

Production Descrption

Huitong Excavator Rock bucket, use hardox steel and top level steel in China. Made for thriving the harsh working condition.extra high side plate give higher strength and wear resistance in high wear areas. 4 reinforcing gussets are used to strengthen up machine fittings.

Reinforcing plate is welded on the bottom,excellent Chinese teeth and adapter assure prolonged service life.
Material: Q345 & NM400/HARDOX450/HARDOX500. The thickness and materials can be customized according to customer requirements

Applicable to heavy working condition, such as loading of hard stone and ore after blasting.

Product Characteristics:

Large bucket capacity, and large open area;
Large stowing surface, and accordingly high coefficient of fullness;
Made of top quality structural and high strength steel, the adapters are made of domestic top quality products;
Save working time, improve working efficiency.

Production Details

rock Bucket	Width	Capacity	Hinge width	Pin Diameter	Interface Type	suitable excavator
	300mm	0.08m3	168mm	45mm	Pin on	55/60
	305 mm	0.08m3	168mm	45mm	Pin on	55/60
	30 mm	0.1m3	168mm	45mm	Pin on	55/60
	406mm	0.12m3	192mm	55mm	Pin on	65/70
	500 mm	0.18m3	192mm	55mm	Pin on	65/70
	508 mm	0.21m3	192mm	55mm	Pin on	65/70
Standard Bucket	750mm	0.75m3	192mm	55mm	Pin on	200/215
	810 mm	0.8m3	202mm	55mm	Pin on	200/215
	840 mm	0.93m3	216mm	55mm	Pin on	200/215
	860mm	1m3	218mm	70mm	Pin on	PC200
Heavy duty bucket	1200mm	1.2m3	192mm	80mm	Pin on	PC200
	1400mm	1.4m3	202mm	90mm	Pin on	PC305/315 /320/325
	1520mm	1.6m3	216mm	90mm	Pin on	PC305/315 /320/325
	1580-1750mm	1.8-2.0m3	220mm	120mm	Pin on	PC350/355 /360/400
