500L/Min 1000RPM 5KW Planetary Centrifugal Vacuum Mixer
Planetary Centrifugal Vacuum Mixer Industrial Agitator Mixer for Mass Capacity Material

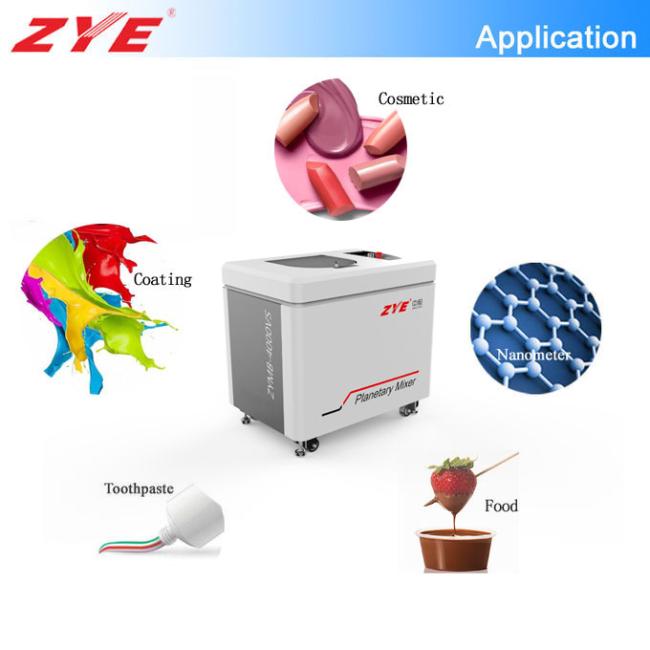

Application
Our planetary mixer is widely used for semiconductor, touch screen, LED, photovoltaic, new materials and chemistry industry.
Like Epoxy Resin, Adhesive Agent, Silver Paste, Soldering Paste, LED Phosphor Material, Carbon Nanotube and so on.
Especially for high viscosity and good fineness products.
Product specification
| SPECIFICATION FOR ZYMB-4000VS PLANETARY MIXER | |||
| Container Capacity | 2000g*2cups | Working Capacity | 750ml*2cups |
| Revolution Speed | 150-1000RPM | Rotation Speed | Adjustable |
| Protection | Door cover, Vibration, Over load, Vacuum leak | Operation Type | Human-machine Interaction Mode |
| Multi-parameter Group | 0-5 recipes, 3part/recipes | Power/Voltage | 5KW/220V |
| Size | L880*W625*H820mm | N.W. | 225KG |
Main feature
1. Double cups
2. Special design for sliver paste material
3. Multi-step parameter
4. Various adapters, customizable
5. Suitable for research and development, volume production
6. Unlimited scale of revolution and rotation, wide range applicable scope
7. Vacuum: 500L/min, approx.-100kpa (when the altitude is zero metres)
8. Standard accessories:Cup:6pcs；Transmission belt:1 pcs(backup)
About US
ZYE is a leading precision equipment manufacturer focusing on planetary mixing and high-end three-roll-mill in China,and is a national high-tech enterprise as well.
We are committed to providing the best solution of mixing, degassing and grinding solution for every segment of material field.
PACKAGE:
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damaged part for you for free.
