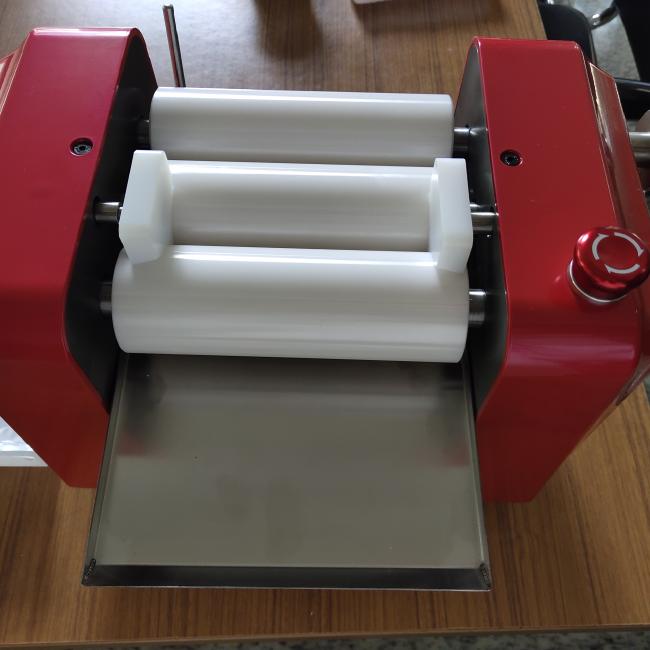

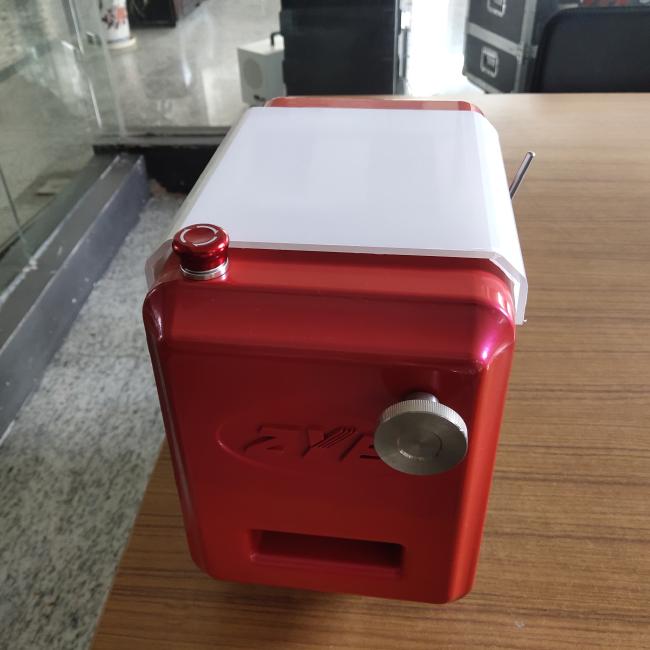

0-5L/H 150mm Length Al2O3 Three Roll Mill For Pigment Grinding
150mm Length Three Roll Mill Triple Roll Grinding Machine 0-5L/h
Roller Materials & Coatings
For optimum results, we offer a range of roller materials for your three roll mill. Our experts can help you chose which material is best for your application.
Product specification
| Three Roll Mill |
| Equipment Model : ZYTR-50 (Brand: ZYE) |
| Roller Material: ZrO2/ Al2O3, Import Nanoscale Ceramic Roller |
| Roller Specification: Roller Diameter: 50mm ; Roller Length: 150mm |
| Roller Precision: Concentricity/Straightness< 2 micron, Planeness<0.3 micron |
| Roller Speed Ratio: 1:2:4 |
| Ceramic Roll Spacing:5-140 Micron |
| Ceramic Roll Speed:0-500RPM(The max speed of the discharge rollers per minute) |
| Power Configuration: DC motor, Steady moment, Safe and reliable |
| 120W DC Motor and Knob Speed Regulator |
| Operation feature: Adjust the gap between two rolls by single handle, Ceramic rollers parallel movement, more convenient |
| Dimension:L340*W190*H260mm |
| Power /Voltage: 120W/ 220V |
| N.W.:20KG;G.W.:25KG |
Main feature
1. High precise (minimum 1μm, depend on materials)
2. Easy-cleaning roller.
3. Variable speeds
4. Hopper(optional)
5. Adjust the gap between two rolls by single hand,
moment balance, easy to operate.
6. Import Nanoscale ZrO2 ceramics rollers about 99.8%
7. Ceramic roller precision: concentricity < 2 micron,
linear degree < 2micron, exterior planeness < 0.2micron
Applications
Colors: Inks, Coatings,Paints
Electronics: Flux, Metal or Carbon Pastes
Adhesives: Conductive, Filled, Underfills
Cosmetics: Lipsticks, Eyeliner, Makeup
Dental: Gels, Pastes, Restorative Materials
Nano Technologies: Graphene, CNT, Ceramics
Food: Chocolate, Nut Pastes
