Izumi 4HG1 Engine Piston Kits For Isuzu 8-97219-032-0 8972190320
Izumi 4HG1 Engine Piston Kits For Isuzu 8-97219-032-0 8972190320
| Engine Number | 4HG1T |
| Part No |
89-7219032-0 |
| Dia Meter | 115mm |
| Pin Size | 36*79mm |
| Ring Size | 3.0k+2.0+4 |
We supply full range of Isuzu piston with ART,IZUMI,ISUZU brand. All piston are produced according to genuine one.
Our replacement piston was export world wide.For its stable and good quality,we never get complaints from clients.
About isuzu 4HG1T engine piston,we always have stock for it. And we supply related overhaul repair engine parts for 4HF1.
· Piston Ring ,Cyliner liner, Piston pin,Clips
· Cylinder head ,Block
· Oil pump, Water pump
· Engine valve, Guide and Seat
· Camshaft
· Connecting rod
· Injector sleeve
· Rocker arm
· Head gasket, Full gasket set
· Crankshaft
· Main bearing, Connecting rod bearing, Camshaft bearing, Piston pin bushing, Thrust washer.
Isuzu piston model:
| 5-12111-242-1 | 4BD1 | 4 | 102 | 98.2 | 58.9 | 3.0 2.5 | 5 | 35 | 87.5 |
| 1-12111-303-1 | 6BD1 | 6 | 102 | 104.2 | 58.8-19.8 | 3.0 2.5 | 5 | 35 | 87.5 |
| 1-12111-777-0 | 6BD1 | 6 | 102 | 104.2 | 58.8-19.5 | 3.0 2.5 | 5 | 35 | 87.5 |
| 1-12111-240-1 | 6BD1T | 6 | 102 | 104.2 | 35 | 87.5 | |||
| 8-94169-765-0 | 4BC2 | 4 | 102 | 98.2 | 3.0 2.5 | 5 | 35 | 85 | |
| 8-94438-989-1 | 4BE1 | 4 | 105 | 95.6 | 56.4-18.1 | 3.0 2.5 | 5 | 35 | 85 |
| 8-94478-116-0 | 4BE1 | 4 | 105 | 95.7 | 3.0 2.5 | 5 | 35 | 85 | |
| 1-12111-377-4 | 6BG1-T | 6 | 105 | 94.5 | 55-18.8 | 3.0 2.5 | 4 | 35 | 87.5 |
| 8-97358-574-0 | 6BG1 4R | 6 | 105 | 94.2 | 55.2-21.5 | 3.3K 2.5 2.5 |
4 | 35 | 87.5 |
| 1-12111-918-0 | 6BG1 | 6 | 105 | 94.5 | 55.2-22 | 3.5 2.5 | 4 | 35 | 87.5 |
| 1-12111-617-0 | 6BG1 | 6 | 105 | 94.6 | 55.2-18.5 | 3.0 2.5 | 4 | 35 | 87.5 |
| 8-94396-837-0 | 6HE1 | 6 | 110 | 100 | 66-19.5 | 3.0 2.5 | 4 | 36 | 79 |
| 5-1211-688-3 | 6HE1T | 6 | 110 | 119.8 | 3.9 3 2.5 | 3 | 40 | 87 | |
| 5-1211-688-3 | 6HE1T | 6 | 110 | 119.8 | 3 2.5 | 4 | 36 | 79 | |
| 8-94391-605-0 8-94391-596-0 | 6HE1T OIL GALLERY | 6 | 110 | 119.8 | 3.9 3 2.5 | 3 | 40 | 87 | |
| OIL GALLERY | 6HE1T | 6 | 110 | 119.8 | 3 2.5 | 4 | 40 | 87 | |
| 8-94391-696-0 | 4HE1 | 4 | 110 | 110 | 66.2-22.6 | 3.0HK 2.0 1.2 |
3 | 40 | 87 |
| 8-97176-655-0 8-97095-585-1 |
4HF1 | 4 | 112 | 94.5 | 60.8-21.4 | 3.0 2.5 | 4 | 36 | 79 |
| 5-87813-391-0 8-97176-656-0 | 4HF1 | 4 | 112 | 94.5 | 60.8-22 | 3.0HK 2.5 | 4 | 36 | 79 |
| 8-97183-667-0 | 4HF1 | 4 | 112 | 94.5 | 60.7 | 3.0k 2.5 | 4 | 36 | 79 |
Piston Surface Treatment
We also supply Mitsubishi, Toyota, Nissan,Komatsu,Hino,cumminsss, , Hyundai,Deutz,heavy duty truck engine piston
kits with high quality and fast delivery time.

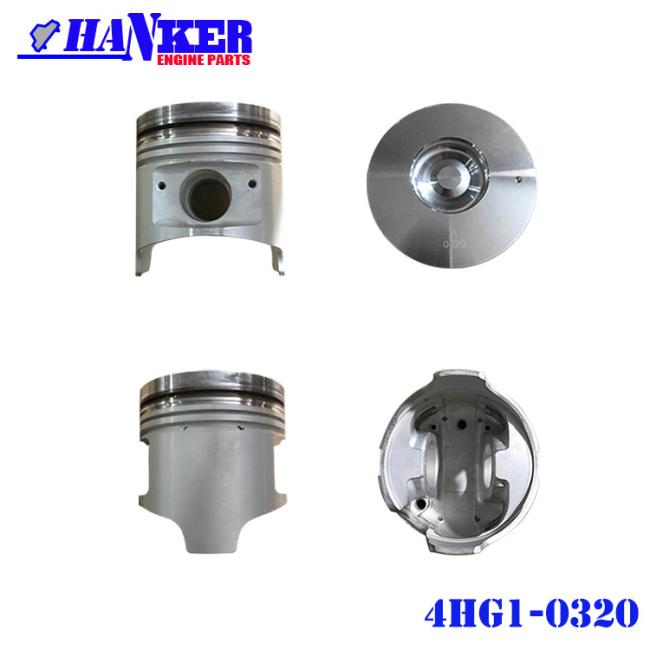

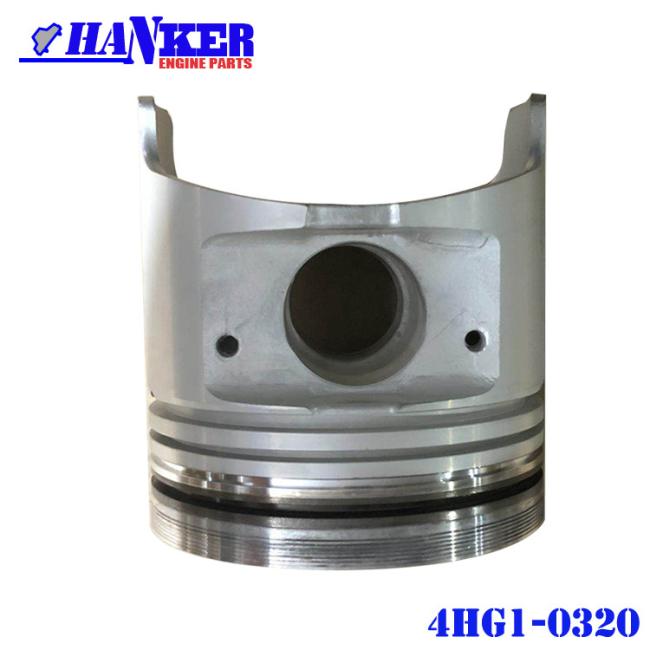

Please check the 4HG1 photos as below:
This piston we have both tined and graphite color with inner cooling channel.
