Dry Type Cement Manufacturing Plant Rotary Kilns ISO CE Certificated
Cement Manufacturing Equipment / Cement Rotary Kiln for Sale

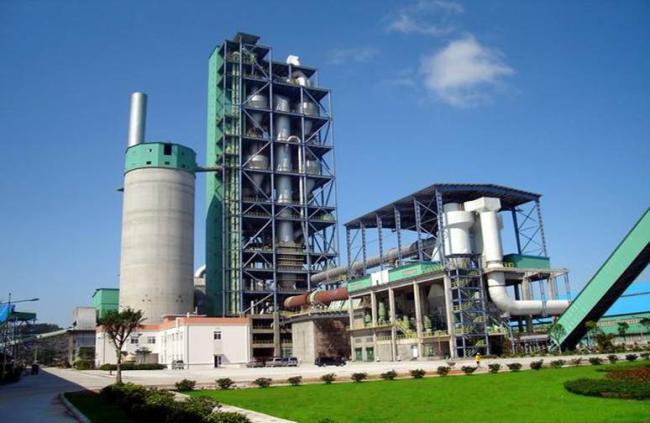

We provide the full range service including design, manufacturing, installation for new type dry method cement production line with capacity from 50t/d to 3000t/d.
Process of Cement Production Plant:
1. Raw Materials
2. Raw Material Preparation
3. Crushing and Pre-homogenization
4. Raw Material Homogenization
5. Preheater and Calciner
6. Cement Clinker Burning
7. Cement Clinker Grinding
8. Cement Packaging.
Technical Parameter
| Capcity | 25t/d | 50 t/d | 100 t/d | 150 t/d | 200 t/d | |

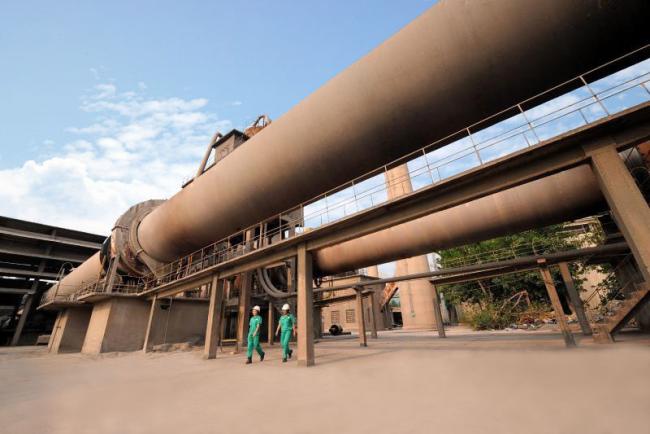

| Rotary kiln | Specification | Φ1.4×33m | Φ1.6/1.9×36m | Φ2.2×45m | Φ2.5×50m | Φ3×60m |
| Capacity | 1t/h | 2t/h | 4t/h | 6t/h | 8t/h | |
|
Calcination Temperature (℃) |
1450 | 1450 | 1450 | 1450 | 1450 | |
| Raw mill | Specification |
Φ1.2×4.5m Open circuit |
Φ1.5×5.7m Open circuit |
Φ1.83×6.1m Open circuit |
Φ1.83×6.1m Closed circuit |
Φ2.2×6.5m Closed circuit |
| Capacity | 1.7t/h | 4.5t/h | 9t/h | 12t/h | 16t/h | |
| Motor power | 55kW | 130kW | 210kW | 210kW | 310kW | |
| Cement mill | Specification | Φ1.2×4.5m Open circuit |
Φ1.5×5.7m Open circuit |
Φ1.83×6.1m Open circuit |
Φ1.83×6.1m Closed circuit |
Φ2.2×6.5m Closed circuit |
| Capacity | 1.4t/h | 3.5t/h | 6.5t/h | 8t/h | 12t/h | |
| Motor power | 55kW | 130kW | 210kW | 210kW | 310k | |
OUR ADVANTAGE
1. High Efficiency
Cement production line adopts advanced technology and equipment to raise technical level and to ensure design indexes. New five-stage cyclone pre-heater system, high efficiency air girder grate cooler, multi-passage pulverized coal burner, Davison heat temperature fan, jet pulse dust collector, as well as chain-board elevator, chain conveyor adopted in this production line can ensure that the technology is advanced compared to other production lines with the same scale.
2. Saving Energy
Measures have been taken to save energy and reduce consumption. Using chain-board elevator and air slides, reliability of the system is enhanced and conveying energy consumption is decreased.
3. Environmental protection
Effective measures have been taken to guarantee strict environment protection standards. Different efficient dust collectors are set at all dust producing points according to different characteristics of waste gas.
4. High degree of automation
There is no manual operation in the process of mill running, which realizes the automatic control with long-term, stable, effective, makes milling process more stable, realizes fine work of production.
