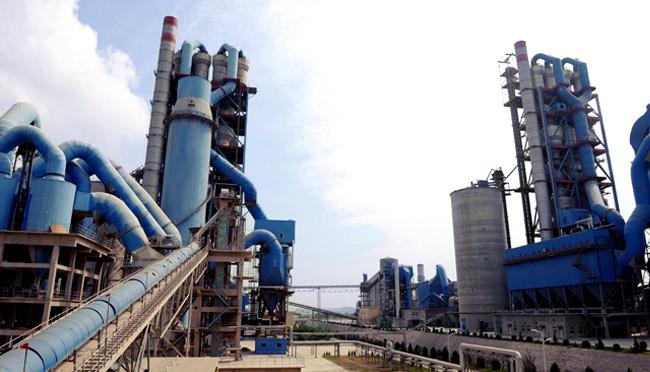

180-3000 T/D Cement Production Line , Cement Rotary Kiln Plant Energy Saving
Cement Rotary Kiln Manufacturer
We provide the full range service including design, manufacturing, installation for new type dry method cement production line with capacity from 50t/d to 3000t/d.
Process of Cement Production Plant:
1. Raw Materials
2. Raw Material Preparation
3. Crushing and Pre-homogenization
4. Raw Material Homogenization
5. Preheater and Calciner
6. Cement Clinker Burning
7. Cement Clinker Grinding
8. Cement Packaging.
Cement Rotary kiln is a pyroprocessing device used to raise materials to a high temperature (calcination) in a continuous process.
Technical Parameters:
| Capcity | 25t/d | 50 t/d | 100 t/d | 150 t/d | 200 t/d | |
| Rotary kiln | Specification | Φ1.4×33m | Φ1.6/1.9×36m | Φ2.2×45m | Φ2.5×50m | Φ3×60m |
| Capacity | 1t/h | 2t/h | 4t/h | 6t/h | 8t/h | |
|
Calcination Temperature (℃) |
1450 | 1450 | 1450 | 1450 | 1450 | |
| Raw mill | Specification |
Φ1.2×4.5m Open circuit |
Φ1.5×5.7m Open circuit |
Φ1.83×6.1m Open circuit |
Φ1.83×6.1m Closed circuit |
Φ2.2×6.5m Closed circuit |
| Capacity | 1.7t/h | 4.5t/h | 9t/h | 12t/h | 16t/h | |
| Motor power | 55kW | 130kW | 210kW | 210kW | 310kW | |
| Cement mill | Specification | Φ1.2×4.5m Open circuit |
Φ1.5×5.7m Open circuit |
Φ1.83×6.1m Open circuit |
Φ1.83×6.1m Closed circuit |
Φ2.2×6.5m Closed circuit |
| Capacity | 1.4t/h | 3.5t/h | 6.5t/h | 8t/h | 12t/h | |
| Motor power | 55kW | 130kW | 210kW | 210kW | 310k | |
| Capacity | 300t/d | 700 t/d | 1000 t/d | 1500 t/d | |
| Pre-heater | C1 | 2-Φ2500 | Φ3500 | Φ4800 | 2-Φ4000 |
| C2 | Φ3600 | Φ4800 | Φ4800 | Φ5800 | |
| C3 | Φ3600 | 2-Φ3700 | Φ5200 | Φ5800 | |
| C4 | Φ3600 | Φ4800 | Φ5200 | Φ6200 | |
| C5 | Φ3600 | Φ4800 | Φ5200 | Φ6200 | |
| Pre-calciner | Specification | Φ2200 | Φ2800 | Φ4800 | Φ5200 |
| Rotary kiln | Specification | Φ2.8×44m | Φ3×48m | Φ3.2×50m | Φ3.5×54m |
| Capacity | 12.5t/h | 30t/h | 42t/h | 63t/h | |
| Calcination temperature (℃) | 1450 | 1450 | 1450 | 1450 | |
| Raw mill | Specification |
Vertical roller mill Φ1700 |
Dry mill Φ3.2×7+1.8m |
Dry mill Φ3.5×10m |
HRM2800 Vertical roller mill |
| Capacity | 30t/h | 50t/h | 85t/h | 130~160t/h | |
| Motor power | 400kW | 1000kW | 1250kW | 1250kW | |
| Cement mill | Specification |
Φ2.4×13m Open circuit |
Φ3×11m Closed circuit |
Φ3.2×11m Closed circuit |
Φ4.2×13.5m Closed circuit |
| Capacity | 22t/h | 42t/h | 64t/h | 95t/h | |
| Motor power | 800kW | 1250kW | 1400kW | 3550kW | |
