High Precision 100 Ton Type Digital Truck Scales , Truck Weighing Systems

Price Negotiable
Price: Negotiated price
MOQ: 1 set
Delivery Time: 10~25 days
Brand: Purple Horn
Product Description

High Precision 100 Ton Digital Type Vehicle Scales Weighing Systems



Purple Horn SCS Truck Scale Introduction:

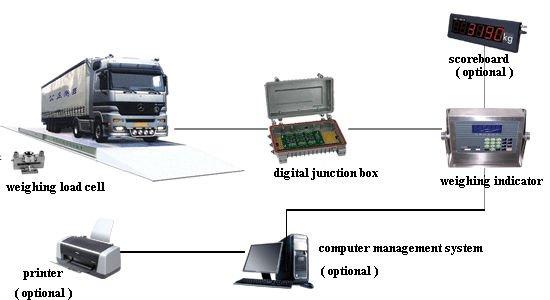

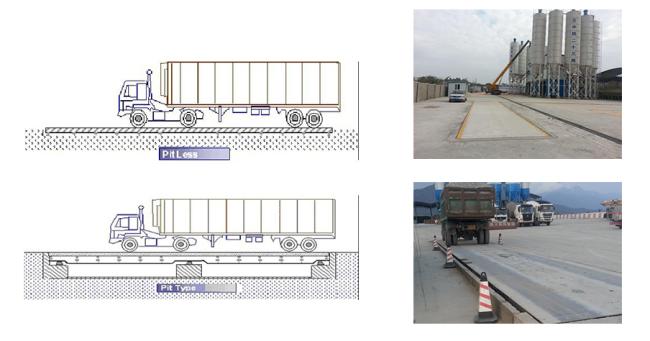

With the high precision, good stability load cell and weighing indicator, SCS series electronic truck scales are pitless and high-performance weighing apparatus of main goods which are widely used in port, warehouse, factory, and freight yard. Optional accessories include Large display and PC weighing management system.

Features:

1. Modularization, standardization, serialization platform, multi-unit combination
2. Automatic reset force transmission system
3. Can be matched with various indicators
4. Digital display gross weight, net weight, tare
5. Dynamic, under load and overload, etc state display
6. Digital filtering, clear tare automatically
7. Subtract tare and clear tare automatically
8. Keyboard set/calibration
9. Vehicle No., tare storage, subitem accumulation, total accumulation
10. Data output/print automatically
Truck Scale Technical Paramater
Type Digital truck scale
Platfrom size From 6m to 24m
Platform material 8/10/12/14/16/20mm thickness top steel plate
Painting poxy zinc rich primer and acrylic marine paint
Max. Cap From 30ton to 150ton available
Accuracy OIML Ⅲ
Safe over loade 150%F.S
Power supply 110V+-10%; 220V +-10% AC or DC, 50 or 60Hz
Load cell Keli digital load cell or ZEMIC digital load cell
Weighing indicator YAOHUA or Purple Horn indicator
Interface RS232 (or RS485), PC, printer, extra scoreboard
Working temperture -10~40ºC(indicator), -30~75ºC(load cell)
Working humidity ≤95%
Certificate CE, OIML, ISO9001:2015
