IP21 IP65 3 Phase Solar Pump Inverter 380V 200kw 250kw VFD Pump Controller

Price Negotiable

Price: Negotiable

MOQ: 1

Delivery Time: depend on the order quantity

Brand: VEIKONG

Product Description

IP21 ip65 3 Phase 380v 200kw 250kw VFD Solar Pump Inverter pump controller

VEIKONG is professional manufacturer of solar pump inverter, industrial vfd, soft starter.

VEIKONG VFD500-PV FEATURES: (220V 0.75KW-75KW, 380V 0.75KW-710KW)

1. Operates without grid directly from photovoltaic (PV) cells

2. Automatic start and stop with solar radiation

3. Built-in maximum power point tracking (MPPT)

4. Easy installation and set-up for serial production

5. Compatible with all pump types

6. Good ROI (Return on Investment) against diesel powered pumping

7. Compact and uniform drive module design (IP20)

8. Dual supply capability with change over switch - solar and grid compatible

9. Sensorless vector control of induction motors and permanent magnet motors

10. Energy saving function and dry run self learning function 11 GPRS monitoring control via PC and Mobile

Electrical Specifications

	220V	380V
Max input DC voltage	450V	810V
DC voltage range	150~450VDC	300~810VDC
Normal working DC voltage	260V-400V	400V-650V
Recommended input mppt voltage	330V	550V
MPPT efficiency	>99%
Rated output voltage	1/3-phase 220VAC	3-phase 380-480VAC
Output frequency range	50/60Hz
Max efficiency of the machine	99%
Ambient temperature range	-10 °C~50 °C, derating if the temperature is above 40 °C
Cooling method	Air cooling
Protection degree	IP20/IP21
Altitude	Below 1000m; above 1% for every additional 100m.
Standard	CE/ROHS

Accessories:

1. GPRS (support 2g/3g/4g internet)

2. LCD keypad

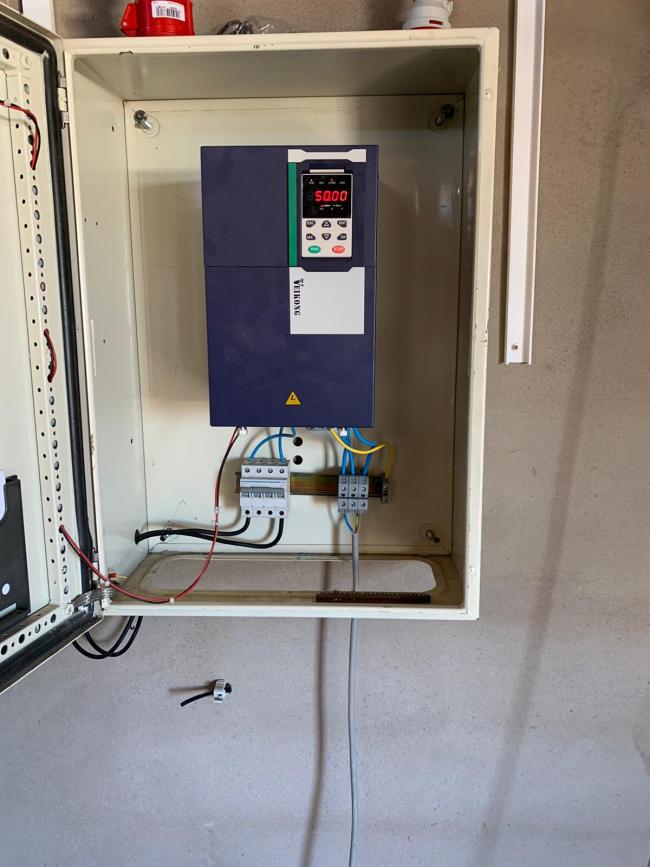

VFD500-PV 22KW 380V inverter picture:

Package:

When power is less than 45kw, we use carton package:

When power is more than 45kw, we use wood case package:

Mode Range

Drive model	Max DC input current (A)	Rated output current (A)	Applicable water pump (kW)
VFD500M-40T00150-PV	6.1	3.7	1.5
VFD500M-40T00220-PV	7.1	5	2.2
VFD500M-40T00400-PV	16.5	9.4	4
VFD500M-40T00550-PV	23.9	13	5.5
VFD500M-40T00750-PV	30.6	17	7.5
VFD500-40T00150-PV	6.1	3.7	1.5
VFD500-40T00220-PV	7.1	5	2.2
VFD500-40T00400-PV	16.5	9.4	4
VFD500-40T00550-PV	23.9	13	5.5
VFD500-40T00750-PV	30.6	17	7.5
VFD50040T01100-PV	39.2	25	11
VFD500-40T01500-PV	49.0	32	15
VFD500-40T01850-PV	57	37	18.5
VFD500-40T02200-PV	69	45	22
VFD500-40T03000-PV	91	60	30
VFD500-40T03700-PV	114	75	37
VFD500-40T04500-PV	146	90	45
VFD500-40T05500-PV	190	112	55
VFD500-40T07500-PV	237	152	75
VFD500-40T09000-PV	273	176	90
VFD500-40T11000-PV	319	210	110
VFD500-40T13200-PV	389	253	132
220V single phase or three phase level
VFD500-20T00075-PV	6.7	4.5	0.75
VFD500-20T00150-PV	9.9	7	1.5
VFD500-20T00220-PV	14.1	10.6	2.2
VFD500-20T00400-PV	22.6	17	4
VFD500M-20T00150-PV	9.9	7	1.5
VFD500M-20T00220-PV	14.1	10.6	2.2

Techincal Parameters:

1. Wake up and sleep function parameters:

P47.05	Light detection threshold	If the output frequency is lower than this value and exceeds P47.06, it will be reported to Sleep and stop	0Hz
P47.06	Light detection time	See P47.05 for explanation.	60s
P47.07	Light weak wake up time	After the sleep fault is reported, if the time when Vdc is higher than the undervoltage point is greater than the set value, the fault state is exited and the operation continues.	600s

2. Dry runing protection function parameters:

P24.12	Dry run/Unload protection option	0: No offload detection is performed; 1: Enable dry run detection	1
P24.13	Dry run/Unload detection level	0.0 to 200.0% The percentage of motor rated current.	0.0%
P24.14	Dry run Unload detection time	0.000s～60.000s	30.000s
P24.15	Unload detection offset frequency	0.00Hz～Fmax Detection frequency=Fmax-P24.15	5.00Hz
P24.16	Reset time of dry run protection	0.0～6000.0	240.0s
P23.21	Dry run detection mode	0000:Coast stop 1000:Fast stop 3000:Continue to run	0000
