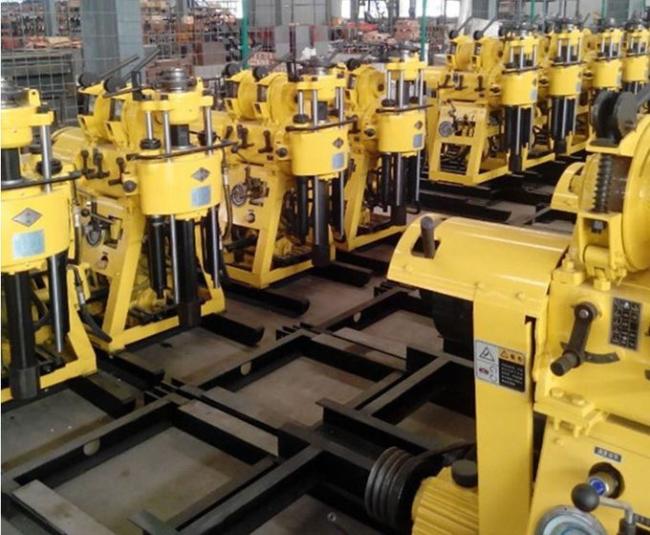

XY-2 New Condition Portable Small Geotechnical Engineering Drilling Rig
XY-2 New Condition Portable Small Geotechnical Engineering Drilling Rig
Product description
Portable Small Geotechnical Engineering Drilling Rig is small and light weighted, mainly used in shallow and medium deep diamond tungsten carbide core drilling, can also be used in engineering geological, hydrogeological, water well and pile grouting hole drilling.
| 1.Unity Machine Parameter | |
| Drilling Depth(m) | 150~200m |
| Hole Diameter(mm) | 75~200mm |
| Drill Rod Diameter | 50 |
| Drilling Angle | 90~75 |
| Drill Weight (No include power) | 910kg |
| Overall Dimession | 2750*950*1600mm |
| 2.Spindle | |
| Spindle Speed | 64, 128, 287, 557r/min |
| Spindle Stroke | 450mm |
| 3.Hoist | |
| Max. Single Line Hoisting Capacity | 2000kg |
| Reel Lifting Speed | 75, 151rm/s |
| Tightrope Diameter | 13mm |
| Tightrope Cubic Measure | 35mm |
| Hug Follgate Belt Width | 70mm |
| Distance Between Drill and Hole | 400mm |
What´s the feature of our Portable Small Geotechnical Engineering Drilling Rig?
1. Mast structure, top-drive head can move down or up along with, strength and rigidity
2. Large torque, compact structure, easy to move
3. Top-drive head is equipped with hydraulic chuck, drilling Efficiently
4. Reasonable arrangement, easy to operate, smooth and quick
