Yellow Portable 200mm Hydraulic Well Drilling Rig For Water Well Drilling
Factory Price Portable 200mm Hydraulic Drilling Rig For Geological Soil Sample/ Factory Price Portable 200mm Hydraulic Drilling Rig For Geological Soil Sample

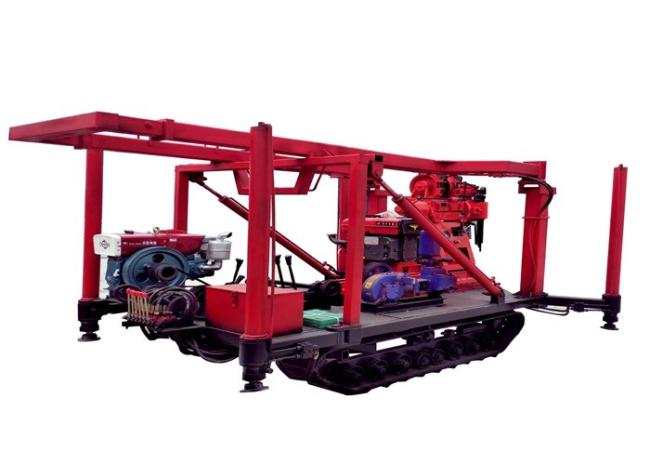

Drilling rig Description
The drilling rigs generally use hydraulic crawler telescopic chassis, self-landing folding mast, telescopic drill pipe, with vertical degree of automatic detection adjustment and hole digital display, etc. Whole machine operation is generally used hydraulic pilot control and load sensing, easy operation and comfortable.
Drilling rig parameters
| 1.Drilling Rig Technical Parameters | |
| Drilling Depth(m) | 50~100m |
| Max. Open Hole Diameter(mm) | 260 |
| End Hole Diameter(mm) | 75 |
| Drill Rod Diameter | 50mm |
| Drilling Angle | 90~75 |
| Drill Weight (No include power) | 810kg |
| Overall Dimension | 2500*900*1300mm |
| 2.Spindle | |
| Spindle Speed | 142,285,570r/min |
| Spindle Stroke | 450mm |
| 3.Hoist | |
| Max. Single Line Hoisting Capacity | 960kg |
| Reel Lifting Speed | 0.41,0.82,1.64m/s |
| Tightrope Diameter | 10mm |
| Tightrope Cubic Measure | 27mm |
| Hug Follgate Belt Width | 70mm |
| 4.Mud Pump | |
| Type | Horizontal Single Urn Twin-action |
| Discharge/Displacement | 95/77L/Min. |
| Diesel | S1105 18HP |
| Electric Motor | 11KW,1440r/min |
| Max. Pressure | 1.2Mpa |
| Work Pressure | 0.7Mpa |
| Water Inlet Diameter | 30mm |
| Water Outlet Diameter | 25mm |
| Triangle Conveyre Belt | B1575mm |
Global market
America,Canada,Brazil,Columbia, Venezuela,India,Iran,UAE,Russia ,Kazakhastan,Italy,Hungary ,Australia,Syria,Egypt , Russia, America, Middle East, South America, Southeast Asia, Central Asia , African, Australia,Europe etc
