1T Battery Trolley Crane with Electric Rotating for Places with Flat Floor
1. Product Description

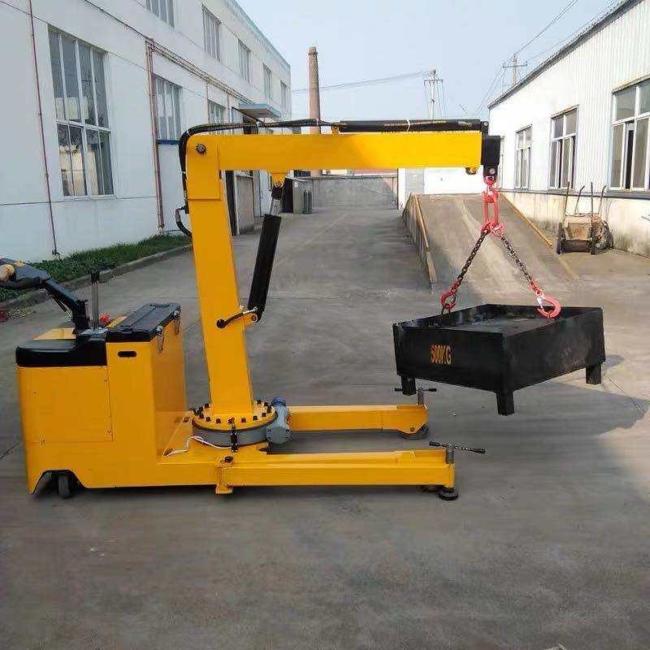

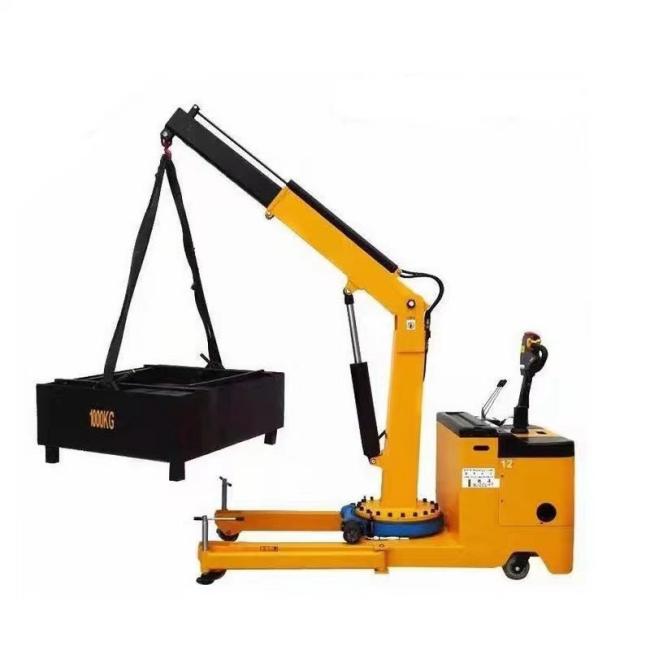

Arm extends, return and rotate electrically, proper for lift and move Max. 1ton capacity material; Arm Lift up and down, hook min. height to ground is 600mm, proper to catch material above 600mm height; Outriggers with inner width 680mm, proper to container material narrow than 680mm. Or the straddles could enter pallet to lift the material; Pedestrian operation, good for use in plant area, warehouse and workshop, places with flat floor.
Battery power drive to walk, lifting. Generally used during the day and charged for about 8 hours at night. The boom can be electrically stretched and rotated by 90 degrees. Liwhen, but not when rotating, and support legs must be supported in place.
2. Product Parameter
| Item | Descriptions |
| Name | Battery trolley crane |
| Model | SDC-A-1030 |
| Capacity(Tons) | 1 |
| Lifting height(m) | 3 |
| Battery(V/Ah) | 24/180 |
| Charge(V/Ah) | 24/25 |
| Lifting Motor(Kw) | 2.5 |
| Driving Motor(Kw) | AC1.5 |
| Rotation(°) | 90 |
| Outriggers Length(mm) | 950 |
| Outriggers Inner Width(mm) | 680 |
| Straddles Overall Width(mm) | 990 |
| Outriggers Ground Clearance(mm) | 200 |
| Min. Arm Extending Distance from Outriggers(mm) | 400 |
| Weight(Kg) | 910 |
| Overall size(mm) L*W*H | 3100*990*1600 |
| Turning Aisle(mm) | 3300 |
| Passing Aisle(mm0 | 1100 |
| Driving wheel(mm) | 1*150*80 |
| Auxiliary wheel(mm0 | 2*150*50 |
| Front wheels(mm) | 2*150*75 |
| Climbing slope(%) | 4/6 |
| Travel Speed(Km/s) | 4/6 Loaded/Unloaded |
| Lifting Speed(mm/s) | 45/50 Loaded/Unloaded |
| Falling Speed(mm/s) | 45/40 Loaded/Unloaded |
| Service Brake | Elwctromagetic braking |
3.Packing and Delivery
4. FAQ:
1). How many operating methods for my selection?
Standard operating methods: A: pendent controller with push buttons .B: remote control with push buttons
2). Can this type work in hazardous environment?
Sure! We can customize for you, acid proof or explosion proof, no problem for that.
3). Can you provide the serious lifting tools?
Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
4). How can we install the winch?
Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
5). Safety device
Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
