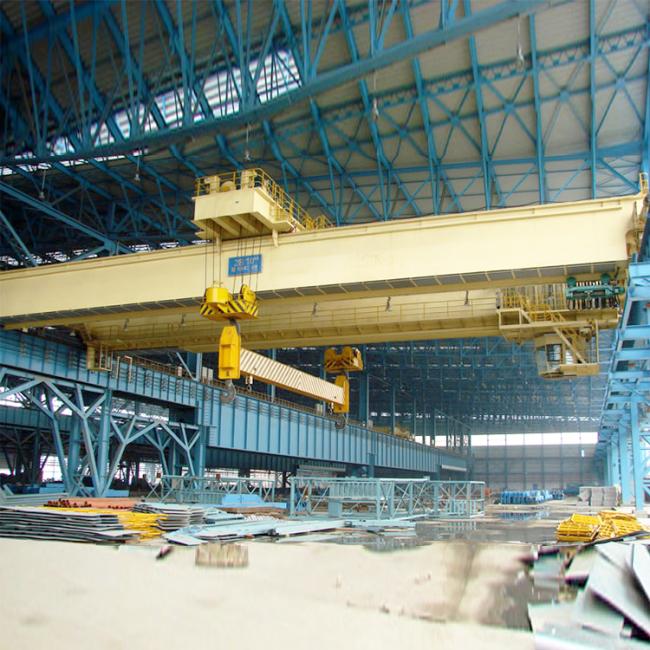

50-ton double girder overhead crane electromagnet bridge crane for steel plant
50ton Double Girder Magnet Electromagnetic Bridge Crane Used For Steel Factory
Double Girder Overhead Crane with Electromagnet is a specialized crane for lifting and moving steel products, steel plates and steel pipes. This crane is constituted by girder, traveling mechanisms, lifting trolley, electric parts and electromagnet spreader. The electromagnetic suction force of this overhead crane can last 10 minutes after power off. And the shape of electromagnet spreader could be customized bases on the shape of materials to be lifted.
Mechanism :
1. High quality steel Q235B and Q345B material;
2. connected by high strength screws;
3. Welding seams are tested by X-ray and ultrasound;
4. Compact structure, small volume;
5. Compact reducer motor drive, step less control, hardened gears and safety disc brake;
6. Good operation performance, step less speed regulating and running smoothly.
| Mechanism | Item | Unit | Result | |||
| Item | ||||||
| Lifting capacity | ton | 5-350 | ||||
| Lifting height | m | 1-20 | ||||
| Span | m | 10.5-31.5 | ||||
| Working environment temperture | °C | -25~40 | ||||
| Speed | Hoisting | Main | m/min | 0.84-9.5 | ||
| Aux. | 5.22-12.6 | |||||
| crab | 5.8-38.4 | |||||
| trolley | 17.7-78 | |||||
| Working system | A5-A6 | |||||
| Power source | three-Phase A C 50HZ 380V | |||||
Sketch Drawing of 50ton Double Girder Magnet Electromagnetic Bridge Crane
Main Features:
High safty fator
Precision
Move and stop smoothly
Easily install, and maintain, dismantle
Parts and component are easy to change when broken.
Competive price.
Certifications;
Our crane has many industry certification from 0.25tons to 900tons, pass GBT 19001-2000 idt ISO9001:2000, GB/T 24001-2004 idt ISO 14001:2004, GBT 28001-2001 ,OHSAS 18001:1999, CE, GOST, SGS, TUV,BV and so on.
Packaging & Shipping
50ton Double Girder Magnet Electromagnetic Bridge Crane Packing Standard:
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying.
2. Main beams, end beams and trolley/ winch are packed by plastic woven cloth. It can reduce abrasion during the transportation.
3. If the size are suitable for container ship, usually by container.
4. Big size, usually by bulk ship or by container after truncation.
Product Details:
We have many advantages about the Electromagnet of 50ton Double Girder Magnet Electromagnetic Bridge Crane
1. Lifting material: cast ingot, steel scraps,steel ball, steel billets;
2. Widely use in steel plants, melting plants,waste warehouse, billet processing plants;
3. High working fciency, safe and reliableoperation
