LX Type Electric Single Beam Suspension Crane A3~A5 with Hoist CD1 MD1

Overhead cranes provide an ergonomic way to move loads that would otherwise be difficult or awkward to configure. They are also built to handle critical loads — from high-value equipment to containers of harmful chemicals — and are thoroughly tested to ensure optimal performance.

Depending on the specific application and load capacity, the following crane systems can range in size, complexity, and operation. Regardless of style, however, there are three universal parts for overhead cranes:

• Bridge: The bridge is comprised of stationary or mobile rails that form a parallel runway to carry one or more trolleys across it.
• Trolley: Running side to side across the bridge, this unit carries the hoist.
• Hoist: The hoist is the mechanical device that hooks onto the load to raise it. Hoists can also be used independently for vertical lifting applications. The most common type, electric hoists, use single-, double-, and variable-speed electric motors to lift capacities ranging from 250 pounds to several hundred tons.

LX Type is applicable in factories and warehouse where the height from the rail surface to the lower edge of the truss is equal to or shorter than 500mm.The trolley is equipped with a specific electric hoist that features flexible structure and reliable and safe operation.If clients have special requirements on the span,our company is able to carry out design and production of non-standard equipment.

Main Features of LX Type Electric Single Beam Suspension Crane A3~A5 With Hoist CD1 MD1:

1. Weight overload protection device

2.Emergency stop system

3.Over current Protection,Short-circuit Protection

4.Phase sequence protection

5.Zero position protection,No-Voltage protection

6.Mechanical interlock protection of controller

7.Limit switch for crane long traveling

8.Stopper and Limit switch for trolley cross traveling

9.Lifting up and lower down limit switch

10.High quality polyurethane buffer for crane long traveling protection

11.Six azimuth movement

12.High protection level

Safety Features of LX Type Electric Single Beam Suspension Crane A3~A5 With Hoist CD1 MD1:

Weight overload protection device, top quality durable polyurethane buffer, crane travelling limit switch, low voltage protection function, emergency stop system, current overload protection function.

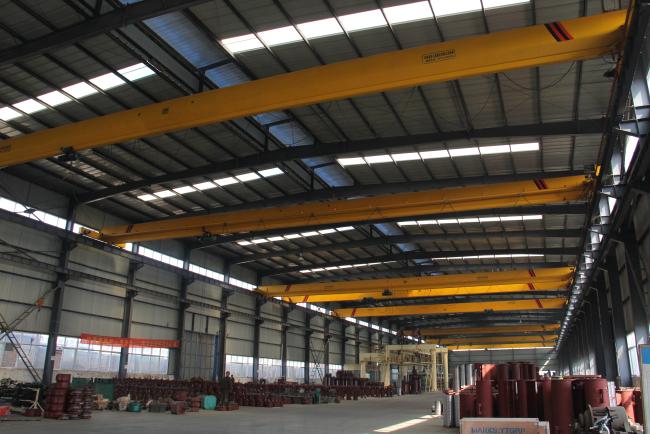

Our Factrory Making Single Girder Overhead Cranes Picture

Delivery Photos of the Single Girder Overhead Crane

When you send us inquiry, plese try to give us the basic technical data as fellow:
