5TON 10TON 16TON 20TON Electric Single Beam Gantry Crane For Outdoor Remote Control
5TON 10TON 16TON 20TON Electric Single Beam Gantry Crane For Outdoor Remote Control
| Rated load/ton | 5 | 10 | 16 | 20 |
| Span/m | 10-40 | |||
| Lifting height/m | 6/12/18 | |||
| Working class | A3/1bM | |||
| Lifting speed/m/min | 8 | 7 | 3.5 | 3.5 |
| Trolley running speed/m/min | 20 | 20 | 20 | 20 |
| Crane running speed/m/min | 20 | 20 | 20 | 20 |
| Power source | 380V50Hz3PhAC | 380V50Hz3PhAC | 380V50Hz3PhAC | 380V50Hz3PhAC |
| Control mode | Remote control | Remote control | Remote control | Remote control |

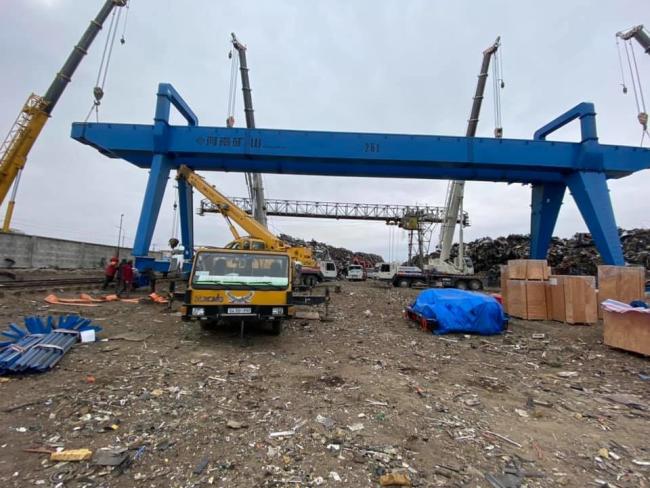

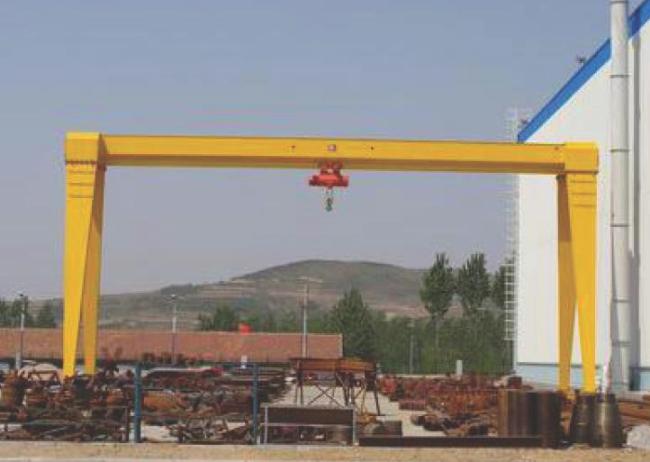

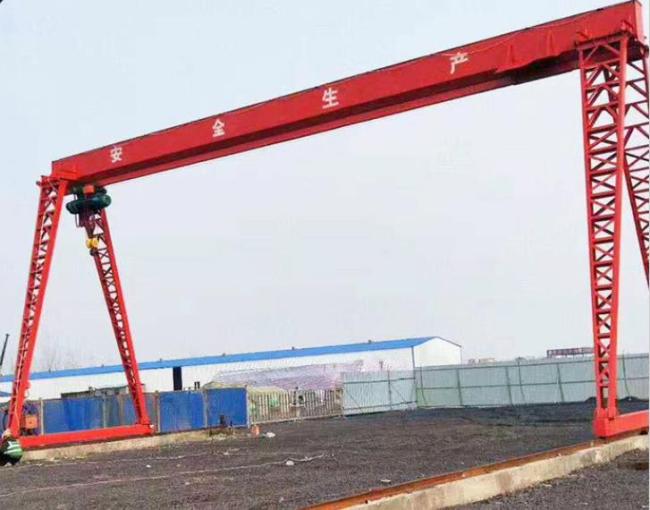

Product photos
Product sketch
Main Features
1.It has main beam,legs,ground beam,lifting mechanism,electric controlsystem.
2.Its structure type has two types, box type or trussed type,Simple and compact structure, steady performance.
3.Lifting unit is Electric Hoist,capacity 5ton,10ton,15ton,20ton
4.Motor protection class IP44,IP54,IP55,Motor insulation class F,H
5.Control mothod:Pendent control ,cabin control or remote control.
6.Working environment tempetature:-20'C~45'C.
Attention
Safety is the most important issue for cranes. To ensure the safety,It is prohibited to use the equipment in the combustible, explosive or corrosives environment.(Need explosion proof type for this).
