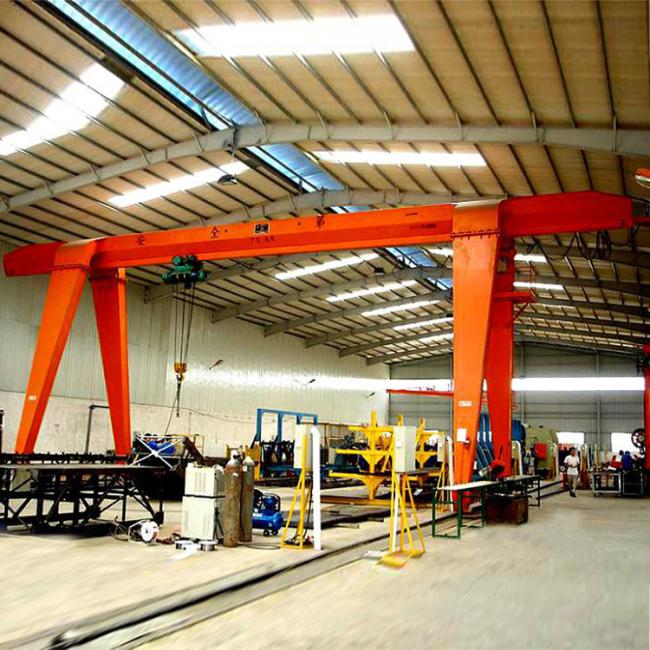

5T Single Girder Gantry Crane Working Duty A5 for Workshop or Open Ground
5T Single Girder Gantry Crane Working Duty A5 for Workshop or Open Ground
1. Description of Single Girder Gantry Crane:
MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and non cantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs which is very convenient and high efficiency.
2. Specs of Single Girder Gantry Crane:
| Lifting Weight/ton | 5 | 10 | 16 | 20 |
| Span/m | 10-40 | |||
| Lifting height/m | 30 | |||
| Working class | A5 | |||
| Lifting speed/m/min | 8/0.8 | 7/0.7 | 3.5 | 3.5 |
| Trolley running speed/m/min | 20 | 20 | 20 | 20 |
| Crane running speed/m/min | 20 | 20 | 20 | 20 |
| Dead weight/t | 10.5~37.5 | 16.8~52 | 18.9~65 |
24.5~77 |
3. Drawing of Single Girder Gantry Crane:
4. Spare parts of MH Single Girder Gantry Crane:
