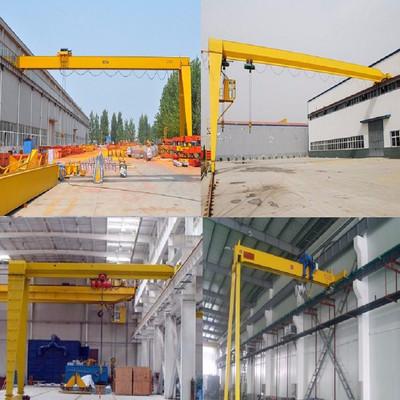

20T Electric mobile Semi Gantry Crane with single leg for general industry

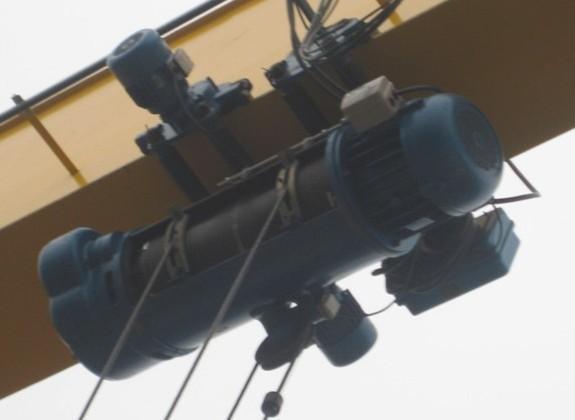

BMH model electric mobile semi gantry crane is used with CD or MD electric hoist.

1) It is a track travelling small and medium-sized crane.

2) Its standard lifting capacity is 2tons-20tons,proper span is from 7.5m to 31.5m,but could be customizable.Working ambient temp.is -20°C to + 50°C.

3) This crane can be used in general working places.

4) It is widely used in outdoor of warehouse,material yard,also could be used in workshop or warehouse to load and unload cargo.

5) Control mode: generally wireless remote control,but could be customizable.

Features:

Simple and compact structure, steady performance.

Easy to install and high efficiency.

Overload, over-current and low voltage protective device.

Efficient wireless remote control.

Easy maintenance.

Specification:

Lifting capacity is 2ton to 20ton;

Span is generally 7.5~31.5m,customizable;

Lifting height is 6m, 9m, 12m, etc;

Working duty is A4;

Working temperature is -20°C to + 50°C.

Sketch Drawing:

Technical Parameter(customizable):
