Electric Single Beam Gantry Crane L Type 5t 12m / Min CE ISO Certificate
Electric Single Beam Gantry Crane L type 5~32/5t Factory Crane Have CE ISO Certificate

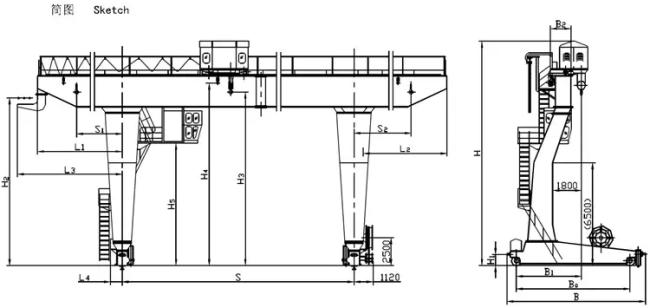

The L-type gantry crane has a simple structure, is easy to manufacture and install, and has a small weight. The main beam of the L-type gantry crane is mostly an off-track box frame structure. Compared with the double-main girder gantry crane, the overall rigidity is weaker. Therefore, , when the lifting capacity Q≤50t and the span S≤35m, this form can be used. The L-shaped is easy to manufacture and install, with good stress condition and small weight. However, the space where the hoisted goods pass through the outrigger is relatively small. Some, L-type gantry cranes are suitable for loading, unloading and handling of various materials in open spaces and warehouses, stockyards, railway freight stations, port terminals, and are widely used in logistics transportation operations. It can also be equipped with a variety of special spreaders for special operations.
| Lifting capacity | t | 5 | 10 | 20 | |
| Span | m | 16,20,30 | 16,20,30 | 18,26,35 | |
| Lifting height | m | 9 | 9 | 9 | |
| Travelling speed | Ground | m/min | 20 | 20 | 20 |
| Controlling Room | m/min | 20,30,40 | 20,30,40 | 30/40 | |
| Electric hoist | Type | CD1 MD1 | |||
| Lifting speed | m/min | 8 or 0.8/8 | 7 or 0.7/7 | 3.5 or 0.35/3.5 | |
| Travelling speed | m/min | 20 | 20(30) | 20(30) | |
| Working system | A3 | ||||
| Power source | 3-phase A.C. 380V 50HZ | ||||
RFQ:
Q1: What's the information should I provide when inquiry?
A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution.
Q4: What area do you service? How can we install the crane?
A4: We mainly service in China and our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
