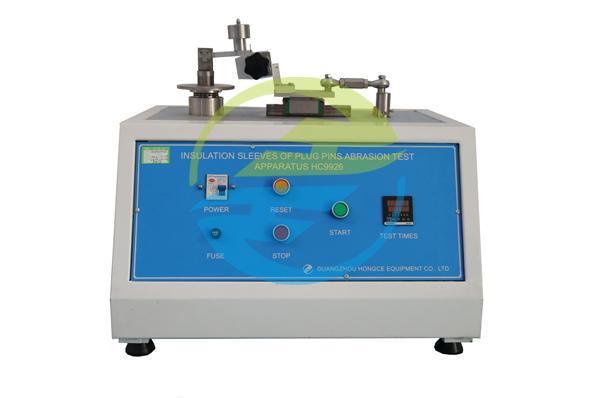

Insulation Sleeves Of Plug Pins Abrasion Test Apparatus Single Station Load 4N
Insulation Sleeves Of Plug Pins Abrasion Test Apparatus Single Station Load 4N
Standard of Insulation Sleeves Of Plug Pins Abrasion Test Apparatus:
IEC 60884-1 2013 clause 24.7 and figure 28, BS1363-1 figure 9
Application of Insulation Sleeves Of Plug Pins Abrasion Test Apparatus:
This device is use for test the abrasion resistance strength of insulation sleeve of plug pins
Feature Insulation Sleeves Of Plug Pins Abrasion Test Apparatus:
Device consists of a horizontal placement of the beam and the linear movement of the fixture seat, wherein, beam ends with diameter 1mm short steel wire is bent into a U-shaped head (U shape of two vertical fixed on the beam), wire U-shaped bottom is 6mm linear part. Compress the 6mm hemline on the plug insulation sleeve, the motor drives the mounting bolt clamp seat to do reciprocating movement back and forth, conducting the abrasion test to insulation sleeve of plug pins
Parameter of Insulation Sleeves Of Plug Pins Abrasion Test Apparatus:
| Parameters / Model | HC9926 |
| Power supply | AC220V 50Hz |
| Station | Single station |
| Test times | 1~999999, preset |
| Rate of abrading | 30 movements per minute |
| Load | 4N |
| Stroke | 9mm, about 7mm scratch on insulation sleeve |
| Steel wire | diameter 1mm, effective length 6mm |
