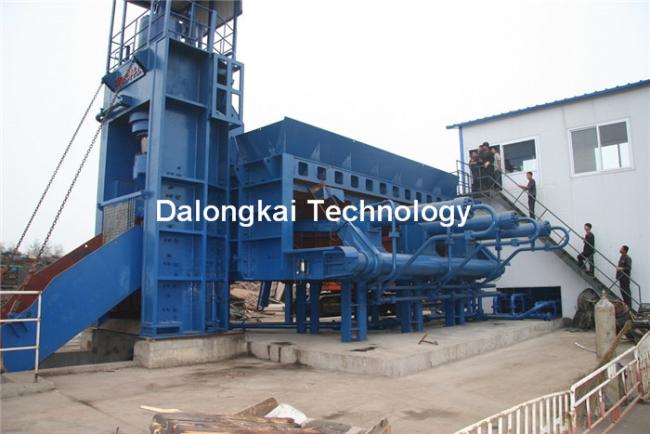

Heavy Duty Hydraulic Gantry Shear 900 - 1000 Blade Length 4.5 Time / Min
4.5 time / min Hydraulic Metal Shear With Hydraulic Drive , 900-1000 Blade Length
Introduction
Q91Y heavy shear are applied in cutting variety if scrap metal. And the shears are suitable cutting thin and soft. mateials After squeezed two or three times by closing lid and lateral pressure head, scrap metal are compressed into blocks. Eventually being cut or crushed directly to become qualified scraps.The shear machine is mainly used for: compression and cut scrap metal ; cut a variety of bars and section bars ; amount of scrap metal are compressed together into one long stripped bales baling light scrap into blocks; scrap car squeezed into bales.
Technical parameters
|
Model |
Max.Cutting Force(ton) |
Press Box Size(mm) |
Blade Length(mm) |
Production Rate(tons) |
Cutting Frequency(times/min) |
Main Motor(KW) |
|
Q91Y-400 |
400 |
5000*2000*1100 |
900 |
8.0-10.0 |
4.5 |
2*90 |
|
Q91Y-800 |
800 |
5000*2000*1400 |
900 |
12.0-25.0 |
4.5 |
4*90 |
|
Q91Y-1000 |
1000 |
6000*2000*1400 |
1000 |
15.0-28.0 |
4.5 |
5*90 |
|
Q91Y-1250 |
1250 |
7000*2000*1400 |
1000 |
18.0-30.0 |
4.5 |
6*90 |
