3PH 50Hz Gantry Shear / Scrap Metal Press 180 - 450KW 380 Voltage Available
380V / 3PH 50Hz Hydraulic Metal Shear 180 - 450KW Large Machine
Introduction

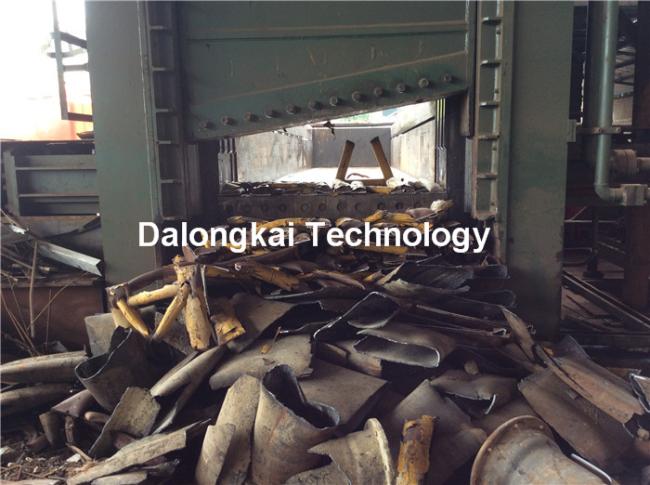

Q91Y heavy shear are applied in cutting variety if scrap metal. And the shears are suitable cutting thin and soft. mateials After squeezed two or three times by closing lid and lateral pressure head, scrap metal are compressed into blocks. Eventually being cut or crushed directly to become qualified scraps.The shear machine is mainly used for: compression and cut scrap metal ; cut a variety of bars and section bars ; amount of scrap metal are compressed together into one long stripped bales baling light scrap into blocks; scrap car squeezed into bales.
Technical parameters
|
Model |
Max.Cutting Force(ton) |
Press Box Size(mm) |
Blade Length(mm) |
Production Rate(tons) |
Cutting Frequency(times/min) |
Main Motor(KW) |
|
Q91Y-400 |
400 |
5000*2000*1100 |
900 |
8.0-10.0 |
4.5 |
2*90 |
|
Q91Y-800 |
800 |
5000*2000*1400 |
900 |
12.0-25.0 |
4.5 |
4*90 |
|
Q91Y-1000 |
1000 |
6000*2000*1400 |
1000 |
15.0-28.0 |
4.5 |
5*90 |
|
Q91Y-1250 |
1250 |
7000*2000*1400 |
1000 |
18.0-30.0 |
4.5 |
6*90 |
