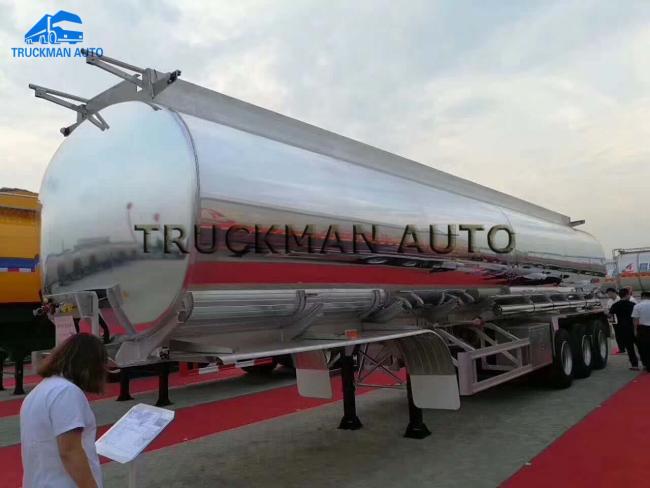

Truckman Aluminum Tank Semi Trailer , Oil Truck Tanker Three Axles 40 Cbm

Price Negotiable
Price: Price is negotiable
MOQ: 1 Unit
Delivery Time: 30 days
Brand: TRUCKMAN
Product Description

Three Axles TRUCKMAN Aluminum 40 Cbm Fuel Tank Trailer With3 Compartments



Weight Rating(kgs)

Curb Weight 7,500kg (approx)
  Payload 32,000kg
  Total Weight 41,500kg



Dimension

(mm)



Trailer

Overall Length 12000mm
    Overall Width 2400mm
    Overall Height 3600mm (approx)
  Wheel base 1310mm/
  Height of fifth wheel mm
  Front overhang  mm
  Rear overhang  mm
Tank Body Assembly
Shape Square Round goose neck style

Total Volume (m3)

40m3 +5%

Valid Volume (m3)

40m3

1 compartment



Material

Tank shell Q235B/6mm
  Dish end Q235B/6mm
  Baffle Q235B/4mm
Spoil box Standard
Manhole 20 inch manhole

Manhole cover

3 units of aluminium manhole cover

Bottom Valve



1 units of 4” aluminium bottom Valve

Piping system

1 set of 4” steel pipes under tank body

Discharge valve 2 units of 4” aluminum ball valve
Vapor recover system Without



Chassis
Main beam

Heavy duty and extra durability designed; Opting for high tensile steel Q345,welded by automatic Submerged-Arc processes

Landing Gear

JOST A400 one side Operation

King Pin

One unit of 90# standard bolt type king pin JOST brand

Running Gear
Suspension

BPW/ Pneumatic suspension

Axle 3 sets of BPW/ 12T axles
Wheel rim 9.0x12 units,Aluminum
Tire  12R22.5 TRIANGLE brand 12pcs
ABS system WABCO 4S/2M
Electric system 24v,7 core socket 24V
Lights LED lights standard LED
Electric wire Factory Standard
Painting
Color Original Aluminium
Others

Anti-static tape

1set
Spare tire carrier 2 set
Mud guard Aluminium
Tool box Standard
Fire extinguisher 2 units 8KG
Discharge Hose 2 units 6m 4’
